Gen4 - Installation - Haulotte HTL 4014 Forward Camera Installation
The forward or side wheel camera is displayed when the telehandler is in forward gear.
It is positioned to show the view of the front right wheel, which is usually obstructed from the view of the operator by the boom (while performing a pick-and-carry lift). This allows the operator to see obstructions that will hit the front right tire while driving.
Installation Steps:

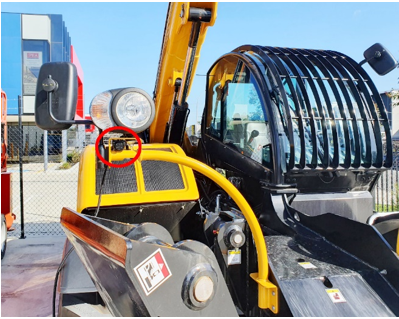

1. Position
the forward camera in the location shown in the image.
2. Drill
three 5mm holes for the M4 mounting bolts for the forward camera at the
location
3. You
will need to remove the cover of the camera by removing the 3 screws located on
the cover of the camera enclosure.

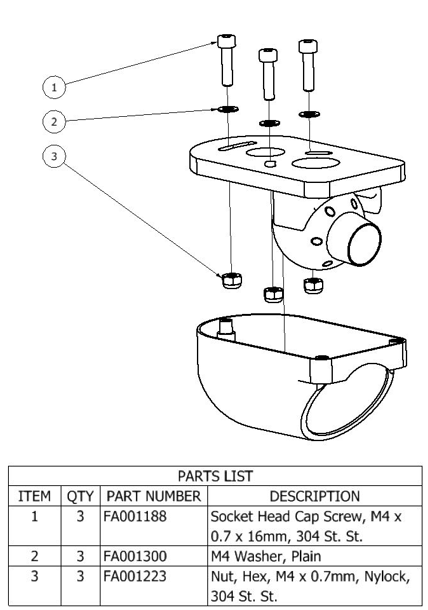

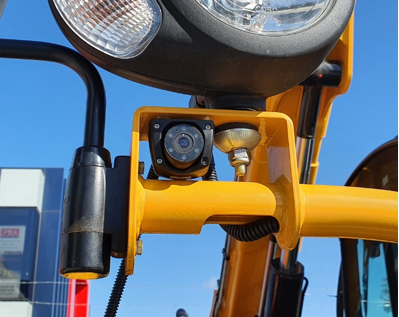

4. Attach
the camera using the bolts, nuts and washers supplied and re-attach the
enclosure cover.
5. The
forward camera cable will be connected during External Cable Completion.
