Gen4 - Installation - Haulotte HTL 4014 Machine & Display & Finalisation Harness Installation
This Tech Doc describes how to complete the Machine & Display Harness Installation
Installation Steps:
1. Inside

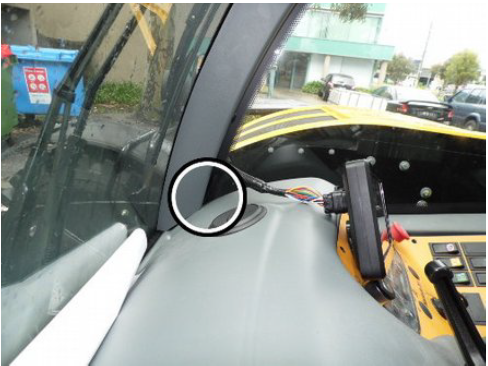

the cabin, run the large black bulkhead connector on the machine & display
harness from inside the dashboard out through the gap between the dashboard
cover and the cab frame.
2. Connect

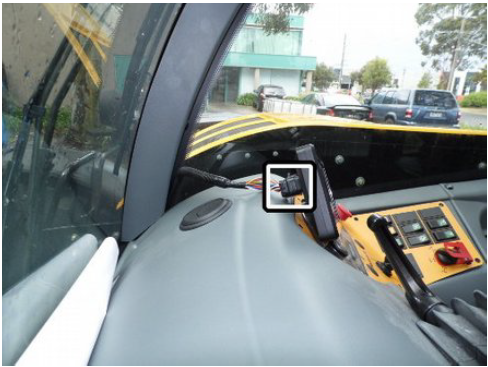

to harness to the display.
3. Connect

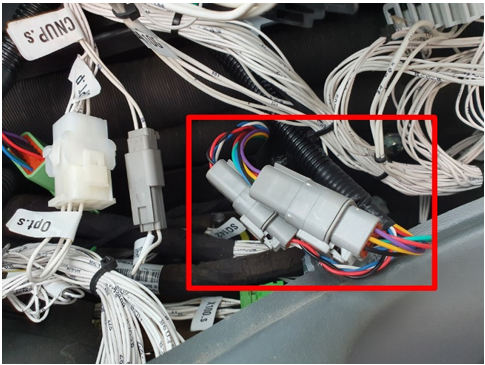

both the 4-Pin connector and 6-Pin connector to the Machine HMI Chasis Harness.

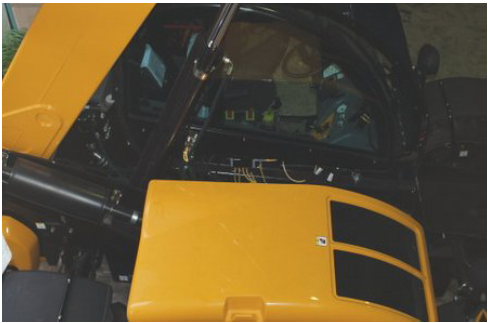

4. Run

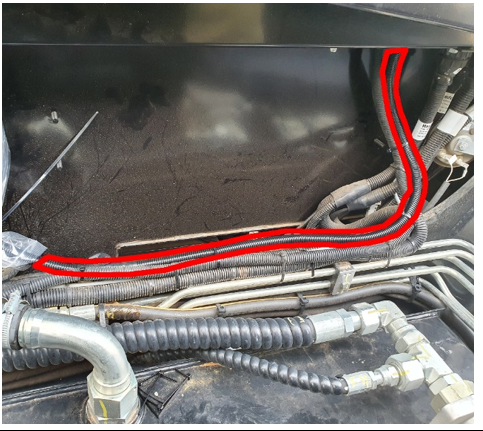

the HMI Harness Chassis cable through the grommet toward the SPM.
5. Connect

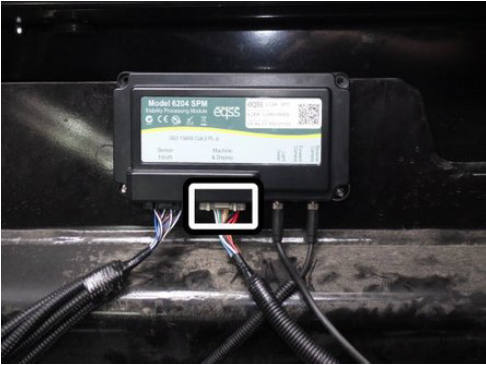

the grey connector to the SPM.
Finalisation
Installation Steps:
1. Reconnect

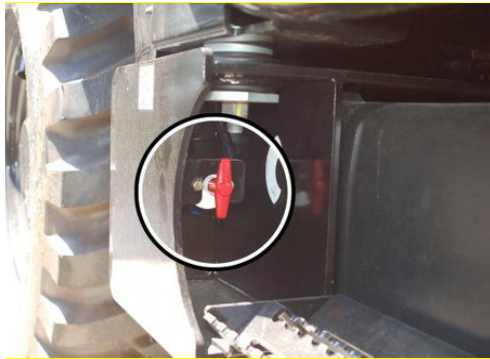

the main battery from the isolation switch.
2. Turn
the machine onto first stage /accessories and ensure the system is activated.

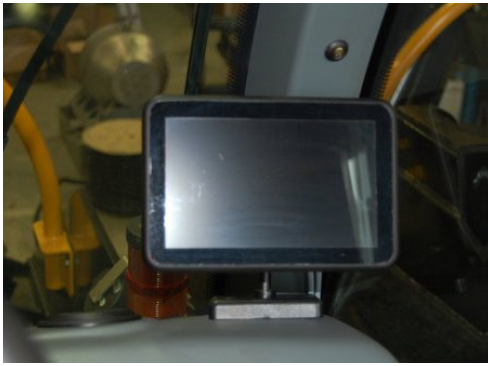

3. Adjust the
display bracket for optimal viewing.
4. Set
the machine into forward gear to activate the forward camera.
5. Adjust the
forward camera so the front right wheel is visible.
6. Set
the machine into reverse gear to activate the reverse camera.
7. Adjust the
reverse camera so the video is level.
8. Operate

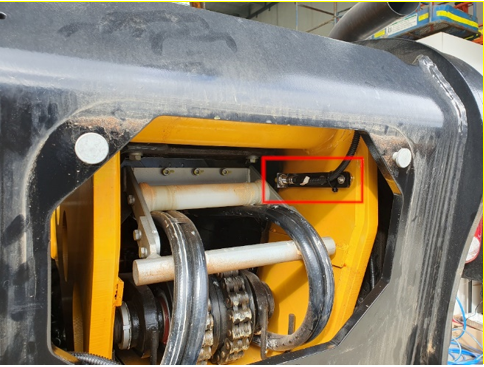

the boom movement controls to test if a false 109 or 123 fault occurs. If
a 109 or 123 fault does occur, adjust the position of the proximity switch
towards the stow switch trigger.
9. Perform
a final check on all the cabling and sensors.
10. Replace
all the covers
