Gen4 - Installation - Haulotte HTL 4014 Machine Connections
The
following procedures connect the safety systems to the existing electronics in
the machine
Installation Steps:
1. Isolate
the machine before continuing to avoid damage to the electronic modules.
2. Locate
the connector CN08 which can be found underneath the dashboard.

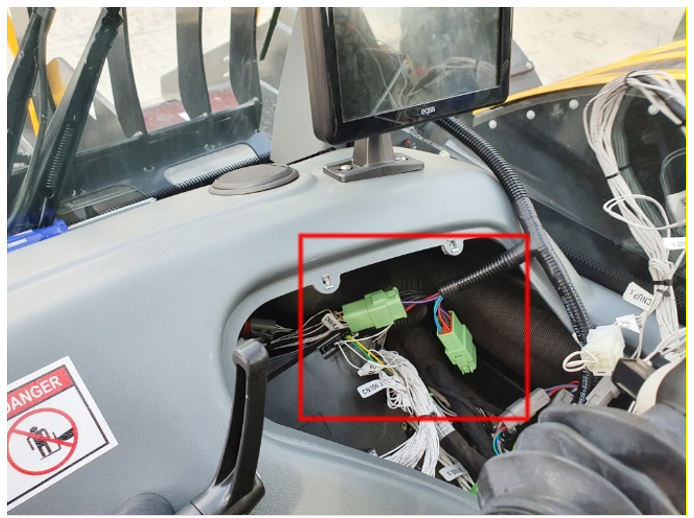

3. Connect
the main 12-Pin Tee connector to CN08 as (shown in the image below).

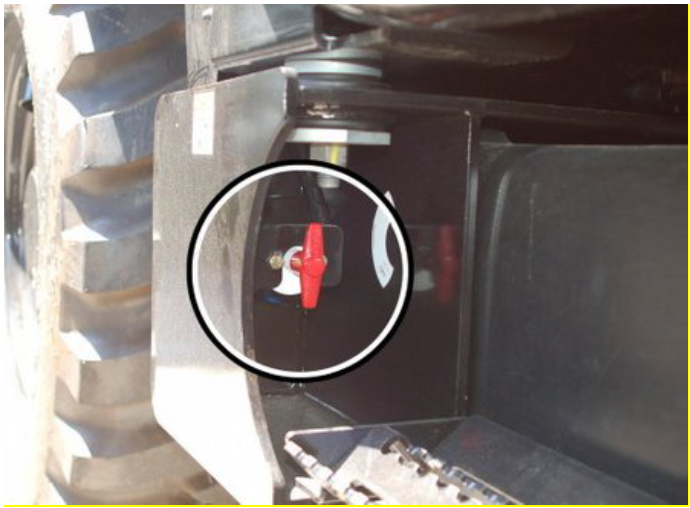

Isolate the main battery before starting the machine connections
