Gen4 - Installation - Haulotte HTL 4014 Remove Covers before Install

Remove the following covers before starting the installation

Removal Steps:

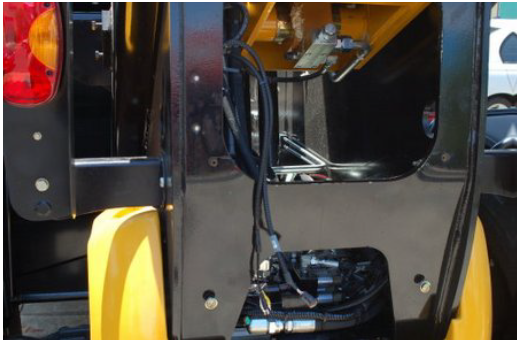

1. Remove the rear cover and disconnect the license plate light.

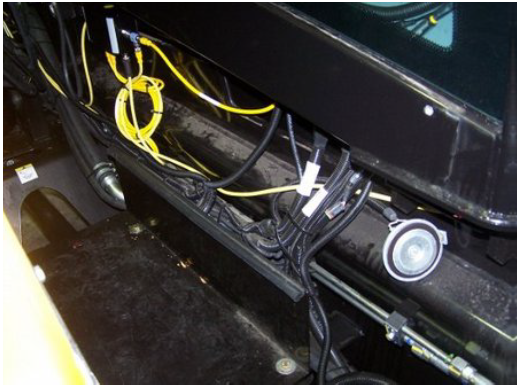

2. Remove the side panel next to the cabin under the boom.

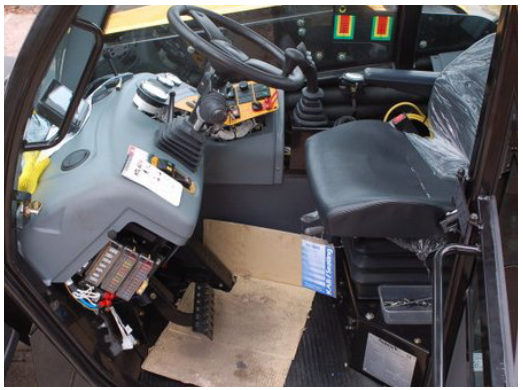

3. Inside the cabin remove the plastic cover under the joystick.

4. Undo the bolts attaching the dashboard.

5. Remove the fuse panel cover below the steering wheel.
