Gen4 - Installation - Haulotte HTL 4017 Camera Cables
This Tech Doc describes how to complete the Camera Cables Installation
Installation Steps:
1. Run
the reverse camera cable towards the cabin, and secure to the existing
hydraulic lines and harnesses along the chassis.

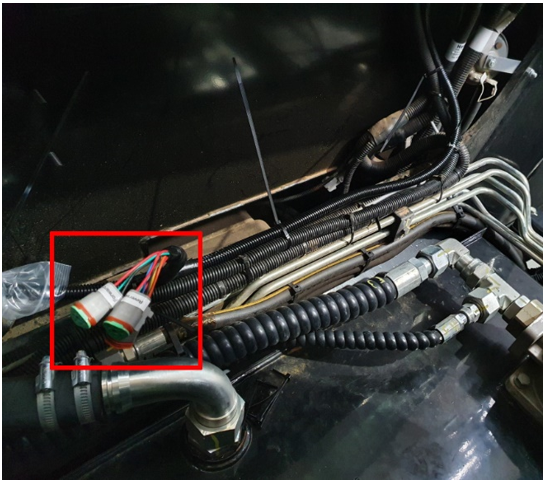

2. Connect
the cable to the 3-pin connector labelled “Reverse Camera”.
3. Connect the camera power and signal connectors to the supplied 5m camera cable.

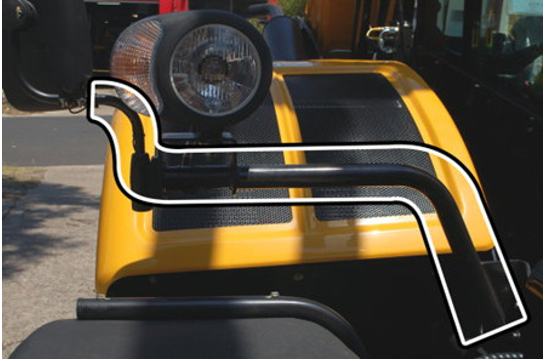

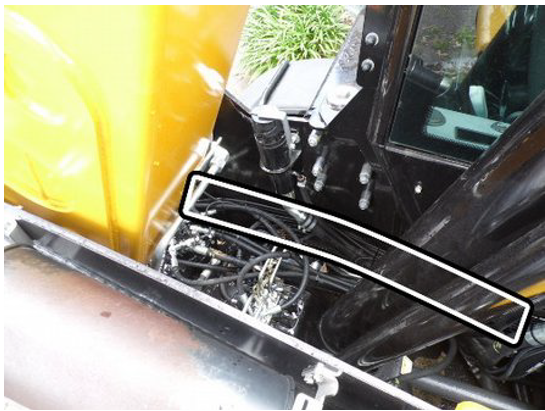

4. Run
the cable along the same path as the headlight cable, run it through the
headlight post, then under the chassis to the side of the cabin.
5. Cable tie to
the headlight cable every 150 mm to 200 mm.

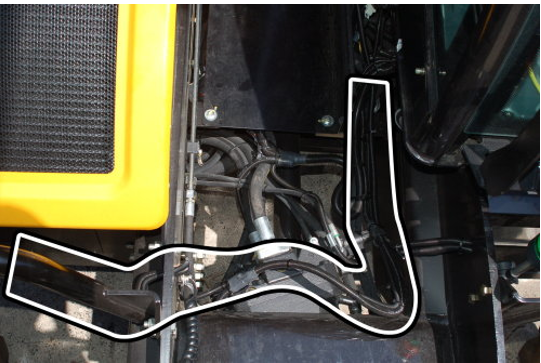

6. Run
the cable back to the SPM and connect to the 3-Pin Connector labelled “Forward
Camera”.
The camera's viewing angle may need to be adjusted once the system is installed
and the display is operational
