Gen4 - Installation - Haulotte HTL 4017 Compensation Pressure Sensors Installation
Compensation Pressure Sensors
Installation Steps:

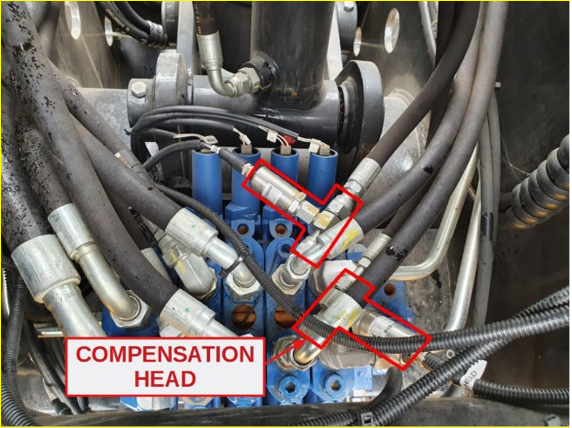

1. Undo
the hydraulic connection for the head compensation into the manifold block at
the rear of the machine.
2. Install
the supplied tee piece and pressure sensor in line with the hydraulic
connection.
3. Undo
the hydraulic connection for the rod compensation into the manifold block at
the rear of the machine.
4. Install the supplied tee piece and pressure
sensor in line with the hydraulic connection.
5. Start
the machine, pressurise the boom and check for leaks.
6. The
compensation cylinder pressure sensors will be connected to the sensor Input
Harness during External Cable Completion.
Note 1. Ensure the pressure sensors do not collide with the boom and chassis structures and the cables do not stretch or pinch when the boom is raised and lowered.
Angle the tee connections to ensure the hydraulic connections and
pressure sensor do not hit the boom when the boom is lowered
