Gen4 - Installation - Haulotte HTL 4017 Display Installation
The
display shows the current safety status of the telehandler
Installation Steps:

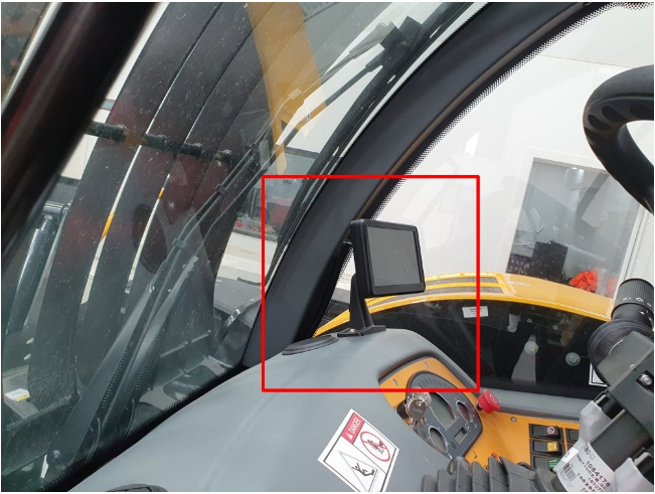

1. Position
the display bracket in the top right of the dashboard (in the approximate
location shown below).
2. Drill
two 7 mm holes to attach the bracket to the dashboard.
3. Secure
the bracket to the dashboard using the supplied large washers and nuts.
Adjust the display bracket for optimal viewing angle once the display is
powered
