Gen4 - Installation - Haulotte HTL 4017 Forward Camera Installation
The forward or side wheel camera is displayed when the telehandler is in forward gear.
It is positioned to show the view of the front right wheel, which is usually obstructed from the view of the operator by the boom (while performing a pick-and-carry lift). This allows the operator to see obstructions that will hit the front right tire while driving.
Installation Steps:

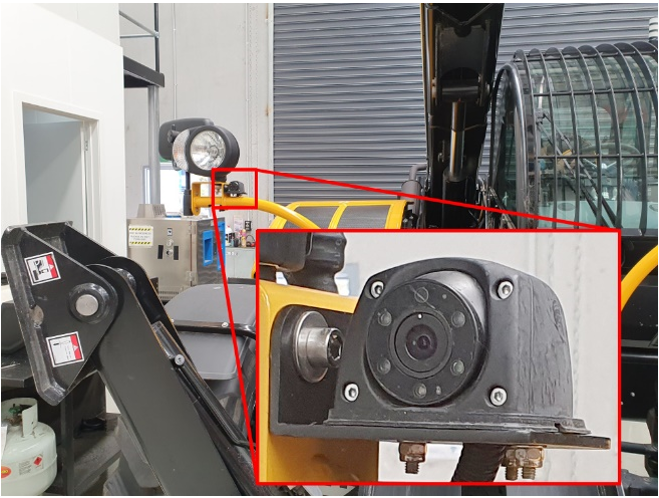

1. Position
the forward camera in the location shown in the image.
2. Mount
the camera using the supplied M6 bolts.
