Gen4 - Installation - Haulotte HTL 4017 Light Tower Cable

This Tech Doc describes how to complete the Light Tower Cable Installation

Installation Steps:

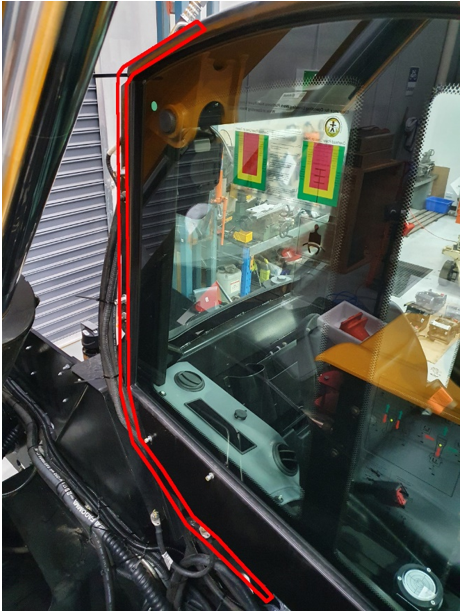

1. Feed the cable down the side of the cabin (as shown below in the image).

2. Connect the cable to the 3-pin connector labelled “Light Tower”.
