Gen4 - Installation - Haulotte HTL 4017 Light Tower Installation

The light tower warns other workers when the telehandler is lifting loads close to its maximum capacity

Installation Steps:

1. Drill and tap two M5 holes in the location specified to mount the light tower bracket.

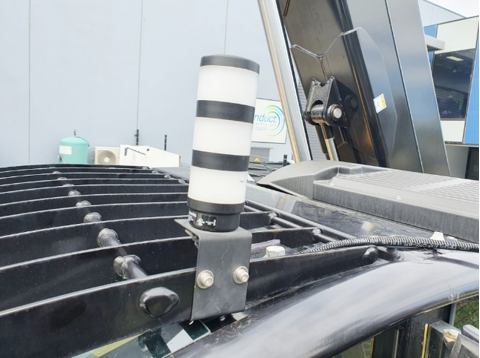

2. Attach the light tower to the roof of the cabin using the nuts, screws, and washers’ supplied.

3. The light tower cable will be connected during External Cable Completion.

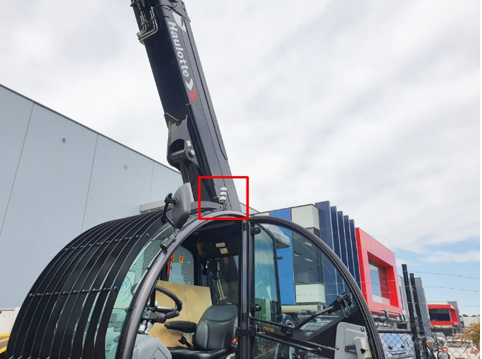

Below: Light Tower Fitting location
