Gen4 - Installation - Haulotte HTL 4017 Machine Connections
The
following procedures connect the safety systems to the existing electronics in
the machine
Installation Steps:
1. Isolate
the machine before continuing to avoid damage to the electronic modules.
2. Locate
the connector CN08 which can be found underneath the dashboard.

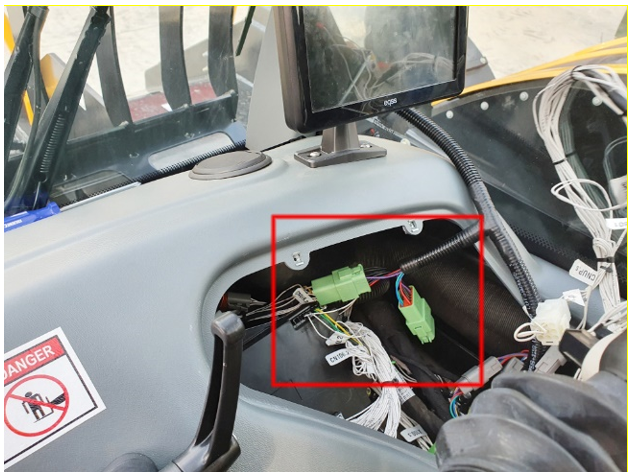

3. Connect
the main 12 pin Tee connector to CN08 as shown in the image.
Isolate the main battery before starting the machine connections
