Notes
This Tech Doc describes how to complete the Machine & Display Harness Installation
Installation Steps:

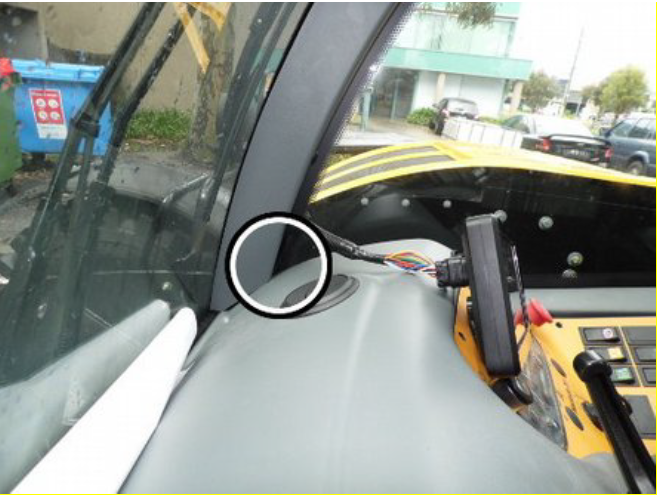

1. Inside the cabin, run the large black bulkhead connector on the machine & display harness from inside the dashboard, out through the gap between the dashboard cover and the cab frame.

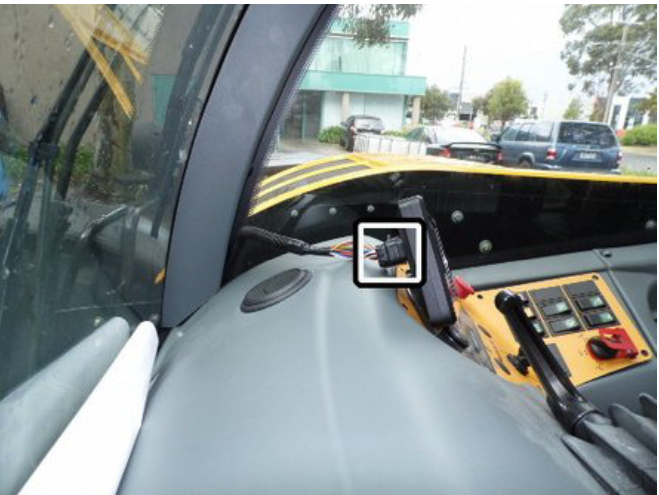

2. Connect the harness to the display.

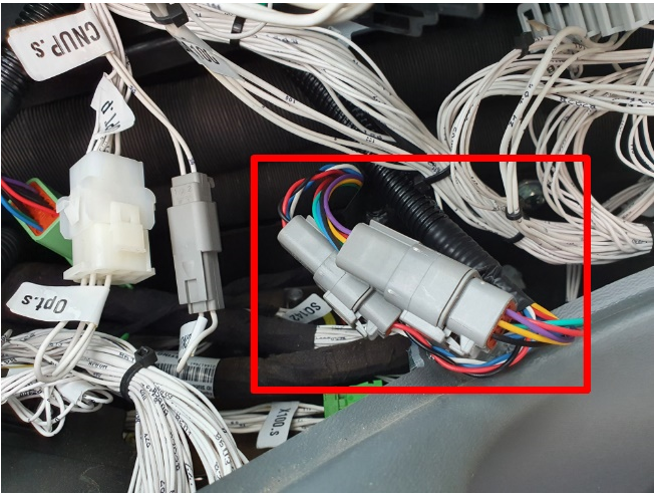

3. Connect both the 4-Pin connector and the 6-Pin connector to the Machine HMI Chassis Harness.

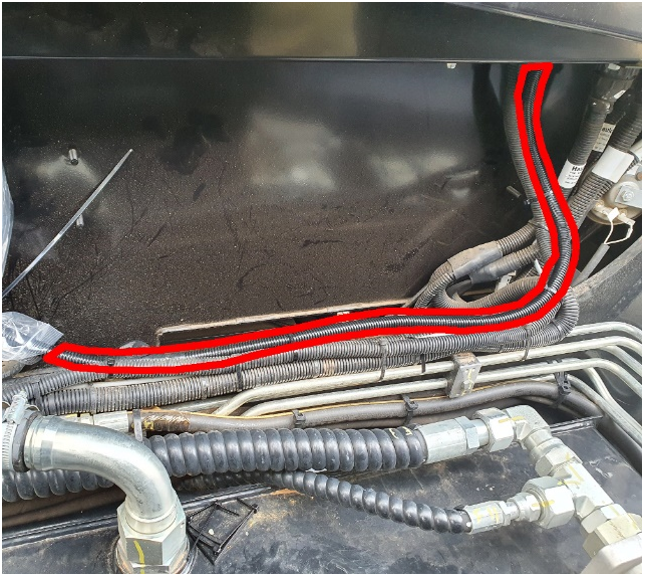

4. Run the HMI Harness Chassis cable through the grommet toward the SPM.

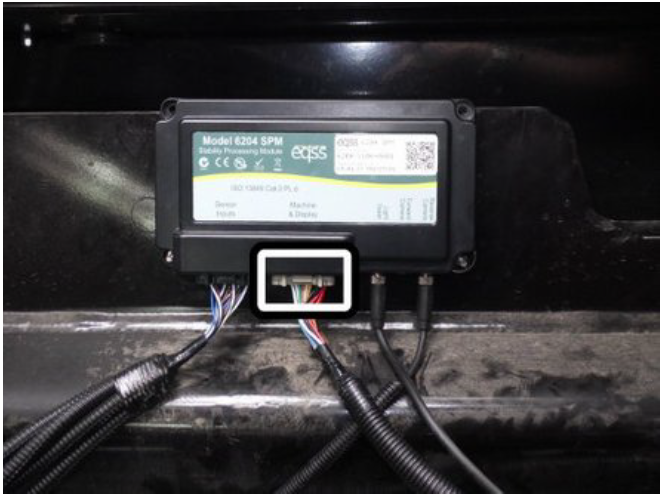

5. Connect the grey connector to the SPM.

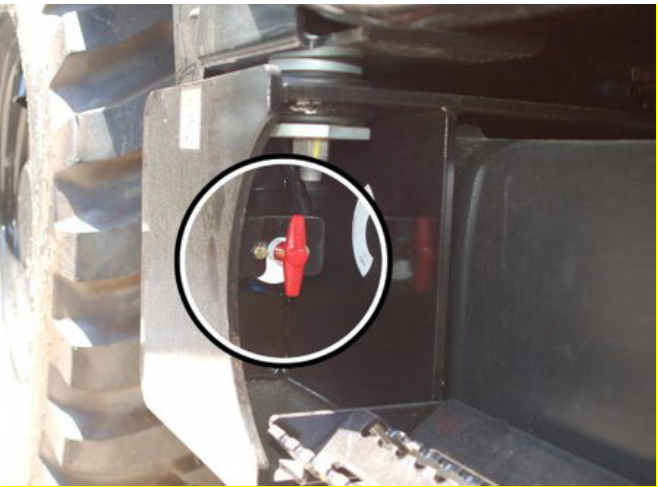

6. Reconnect the main battery from the isolation switch.
7. Turn the machine onto first stage /accessories and ensure the system is activated.

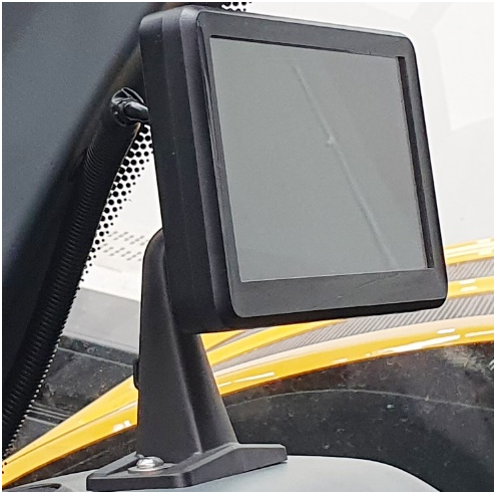

8. Adjust the display bracket for optimal viewing.
9. Set the machine into forward gear to activate the forward camera.
10. Adjust the forward camera, so the front right wheel is visible.
11. Set the machine into reverse gear to activate the reverse camera.
12. Adjust the reverse camera so that the video is level.


13. Operate the boom movement controls to test if a false 109 or 123 fault occurs.
14. If a 109 or 123 fault does occur, adjust the position of the proximity switch towards the stow switch trigger.


15. Perform a final check on all of the cabling and sensors.

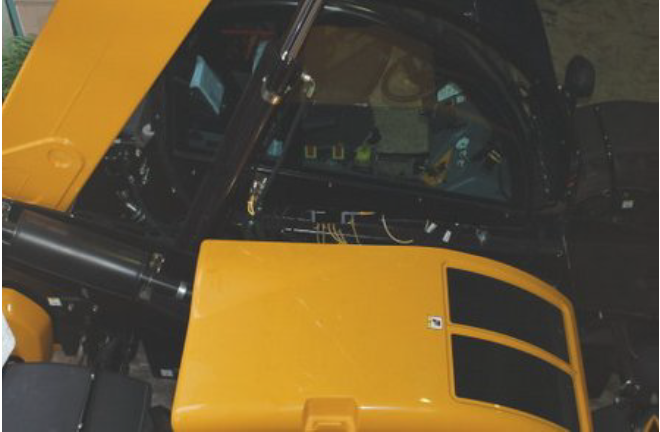

16. Return and refit all of the machine covers.
