Gen4 - Installation - Haulotte HTL 4017 Reverse Camera Installation

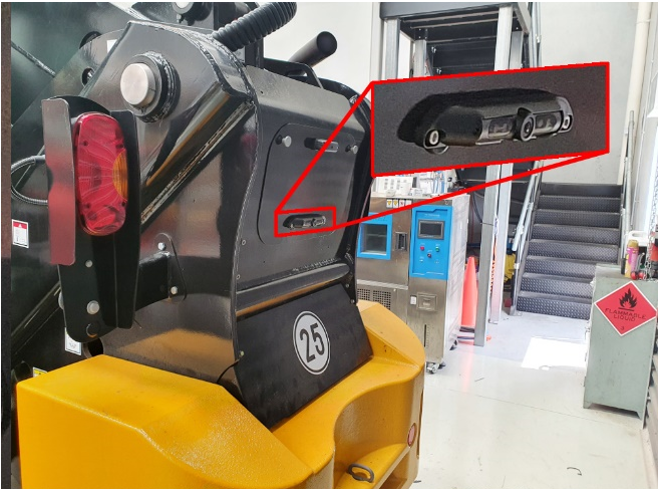

The
reverse camera video is displayed on the screen when the machine is in reverse
gear to allow the operator to see behind the telehandler while reversing
Installation Steps:
1. Drill
two 7mm holes for the M6 mounting bolts for the reverse camera. Making sure to
leave enough room for a license plate.
2. Drill
a 16mm hole for the camera cable.
3. Insert
the camera cable through the hole and mount the camera using the supplied nuts,
bolts and washers.
4. Secure
the camera cable to the license plate light cables.
5. Run
the remainder of the cable towards the cabin and cable tie with the other
cables.
6. The
reverse camera will be connected to the SPM during External Cable Completion.

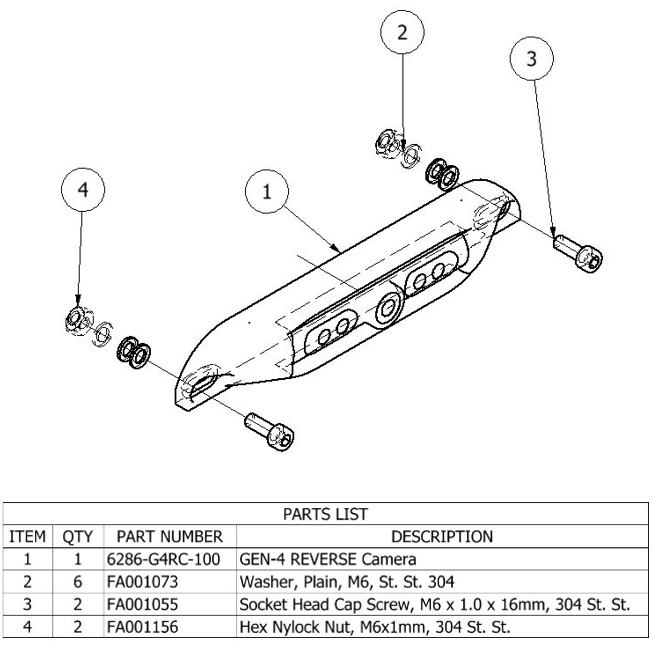

Below: Assembly and part numbers
