Gen4 - Installation - Haulotte HTL 4017 SPM Installation
The
SPM is main processing unit and calculates the safe stability regions of the
machine
Installation Steps:
1. Drill
four M6 holes for the SPM in the side of the cabin in the location shown.
2. Mount
using the supplied M6 bolts and nuts.

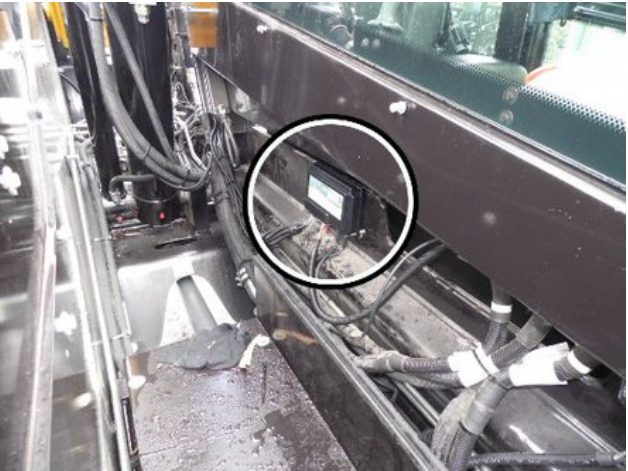

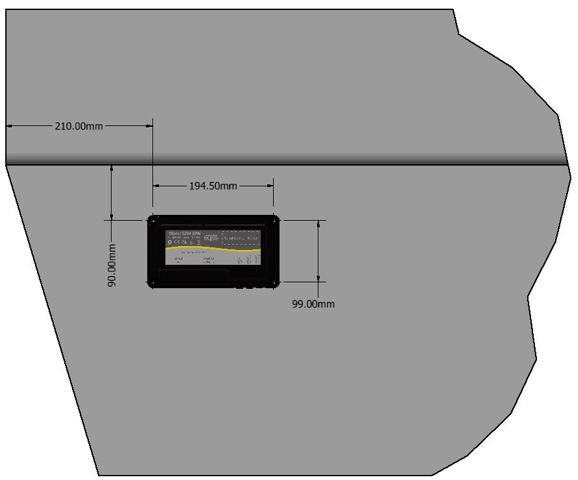

Below: SPM Mounting Location
