ITC SWL- Faults - Fault Codes

If the light from the SWL system starts flashing red, then it is displaying an error.

Error Codes will be based on the red blinking light

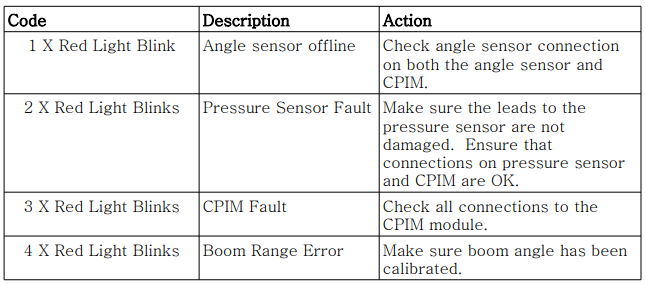

The following table will describe the various error conditions:

​
