Notes
The boom head cable connects between the cable reeler and the jib cable.
It is also connected to the blank plug connector when the jib is not in use and has been removed.
Mount the blank plug connector next to the cable reeler connector.

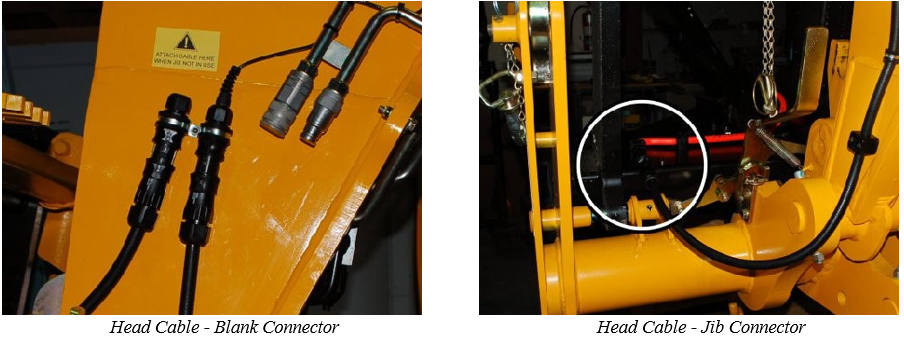

Below: Blank Plug Connector


The head cable connects to the jib cable when the jib is in use and to the blank connector when using a different attachment. It must be secured to the side of the boom head so that it can plug into both connectors and is free to rotate with the jib attachment.

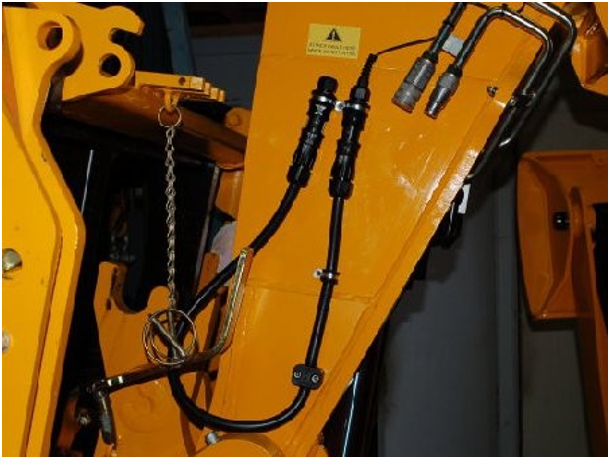

Below: Head Cable





Secure the boom head cable using the supplied p-clips/hose clamps.
​
Below: Head Cable P-Clips & Hose Clamps
