ITC SWL- Hitachi - Jib Cable Installation

The jib cable connects the load sensor to the cable on the boom head.

Mount the jib cable connector in a location that it is easily accessible for the operator.

Below: Jib Connector

Run the cable along the jib as close to the structure as possible to prevent it getting snagged or damaged. Secure using the supplied hose clamps.

​

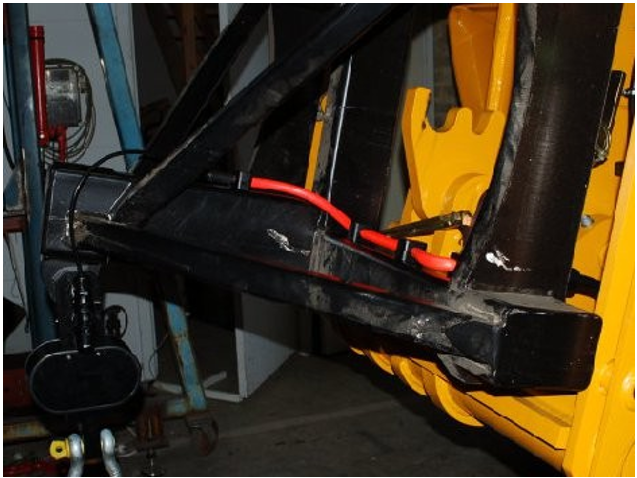

Below: Jib Cable

Connect the end of the cable to the load sensor, ensure that the jib cable has enough freedom of movement to allow the load sensor to swing without damaging the cable.

​

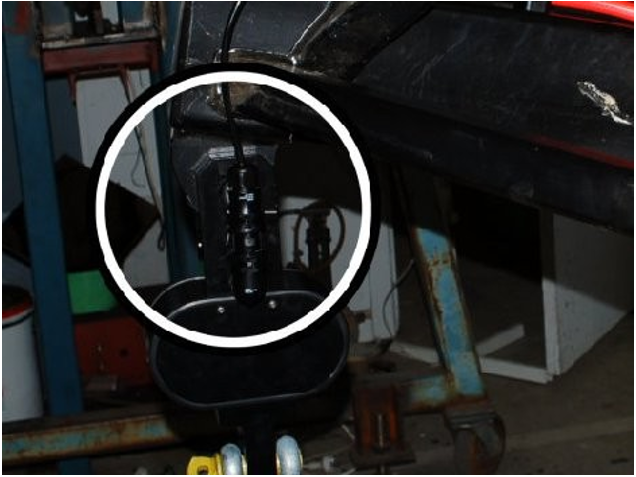

Below: Load Sensor Connector
