ITC SWL- User - Operation

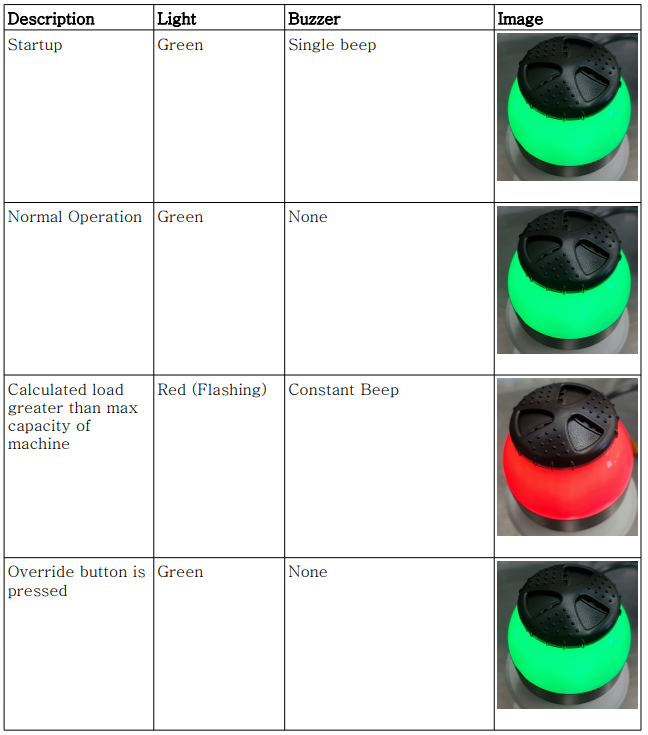

During normal operation of the unit, the following states will explain the behavior of the
unit.
Due to the excess pressure during the breakout stage of the bucket, the
cutout is disabled until the boom reaches zero degrees to the horizontal.
