MCL - Installation - JCB Telehandlers Installation Outline

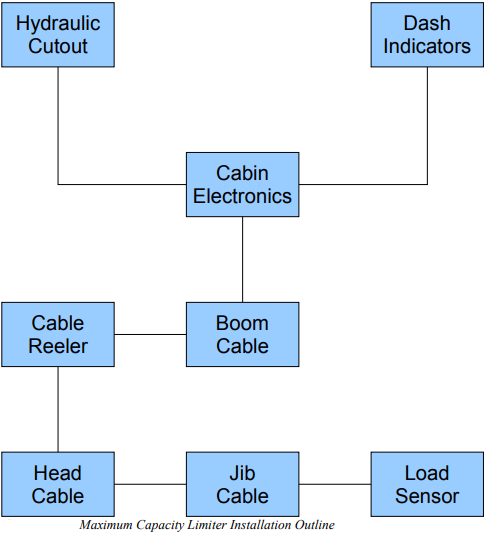

The diagram below outlines the installation components of the MCL
Related Articles
MCL - Installation - JCB Telehandlers Schematics
The schematic below can be used as a reference for MCL installations on JCB TelehandlersMCL - Installation - JCB Telehandlers Load sensor Installation
The load sensor measures the load attached to the hook of the jib If the load is greater than the set weight, the MCL signals an overload back to the cabin electronics. The load sensor is installed between the jib structure and the hook. Installation ...MCL - Installation - Manitou Telehandlers Schematics
The schematic below can be used as a reference for MCL installations on Manitou TelehandlersMCL - Installation - JCB Telehandlers Cabin Electronics Installation
The cabin electronics interface into the load sensor and produce the required cutout. Installation Steps: 1. Install the indicator and override switch into a two spare slot, in the dashboard. The switch housing cutout in the dashboard may need to ...MCL - Installation - JCB Telehandlers Boom Head Cable Installation
The boom head cable connects between the cable reeler and the jib cable It is also connected to the blank plug connector, when the jib is not in use and has been removed. Installation Steps: 1. Mount the blank plug connector next to the cable reeler ...
