MCL - Installation - JCB Telehandlers Jib Cable Installation
The jib cable connects the load sensor to the cable on the boom head.
Installation Steps:

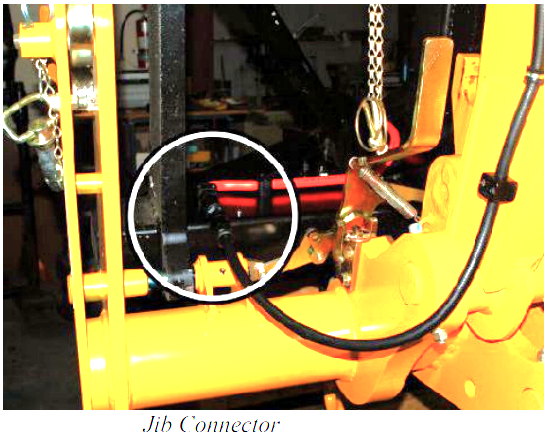

1. Mount the jib cable connector in a location that it is easily accessible for the operator.

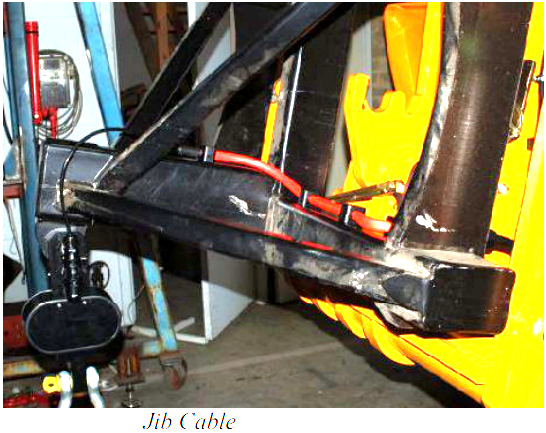

2. Run the cable along the jib as close to the structure as possible to prevent it getting
snagged or damaged.
3. Secure using the supplied hose clamps.

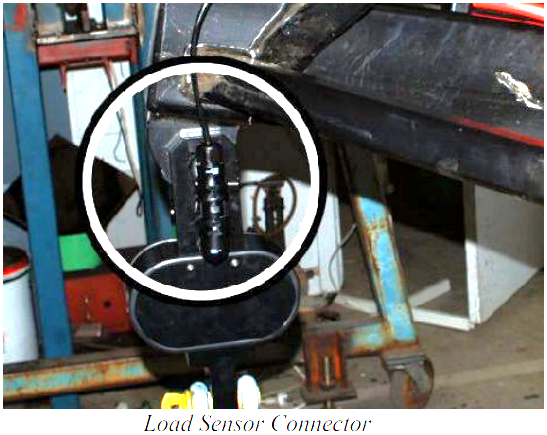

4. Connect the end of the cable to the load sensor, ensure that the jib cable has enough
freedom of movement to allow the load sensor to swing without damaging the cable
