MCL - Installation - JCB Telehandlers Load sensor Installation
The load sensor measures the load attached to the hook of the jib
If the load is greater
than the set weight, the MCL signals an overload back to the cabin electronics.
The load sensor is installed between the jib structure and the hook.
Installation Steps:
1. Remove the locking
pin attaching the hook to the jib.
2. Insert the locking pin and the supplied spacers through
the tongue on the top of the load sensor and into the jib.
3. Insert the supplied locking pin into
the cleavace at the bottom of the load sensor and into the hook.
4. Ensure the locking pins are secured using split pins.

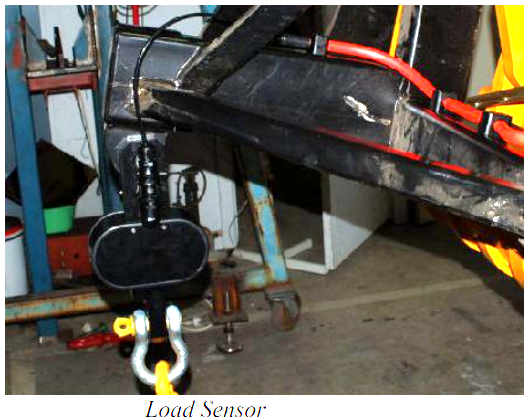

5. Ensure the connector is facing out the top (as shown in the photo below).
