MCL - Installation - JCB Telehandlers Schematics

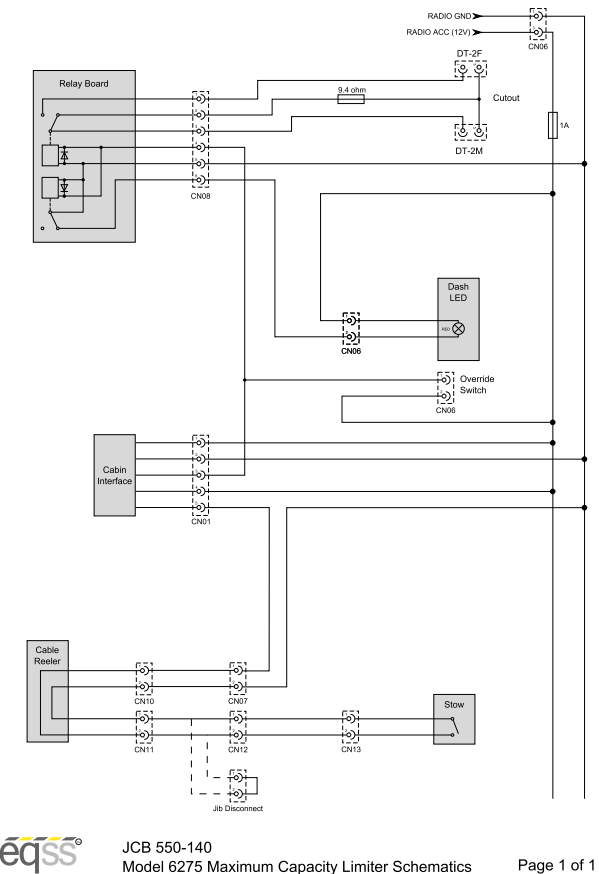

The schematic below can be used as a reference for MCL installations on JCB Telehandlers
Related Articles
MCL - Installation - Manitou Telehandlers Schematics
The schematic below can be used as a reference for MCL installations on Manitou TelehandlersMCL - Installation - JCB Telehandlers Installation Outline
The diagram below outlines the installation components of the MCLMCL - Installation - JCB Telehandlers Load sensor Installation
The load sensor measures the load attached to the hook of the jib If the load is greater than the set weight, the MCL signals an overload back to the cabin electronics. The load sensor is installed between the jib structure and the hook. Installation ...MCL - Installation - JCB Telehandlers Cabin Electronics Installation
The cabin electronics interface into the load sensor and produce the required cutout. Installation Steps: 1. Install the indicator and override switch into a two spare slot, in the dashboard. The switch housing cutout in the dashboard may need to ...MCL - Installation - JCB Telehandlers Jib Cable Installation
The jib cable connects the load sensor to the cable on the boom head. Installation Steps: 1. Mount the jib cable connector in a location that it is easily accessible for the operator. 2. Run the cable along the jib as close to the structure as ...
