Crush Guard - Installation - Generic Wiring Diagram

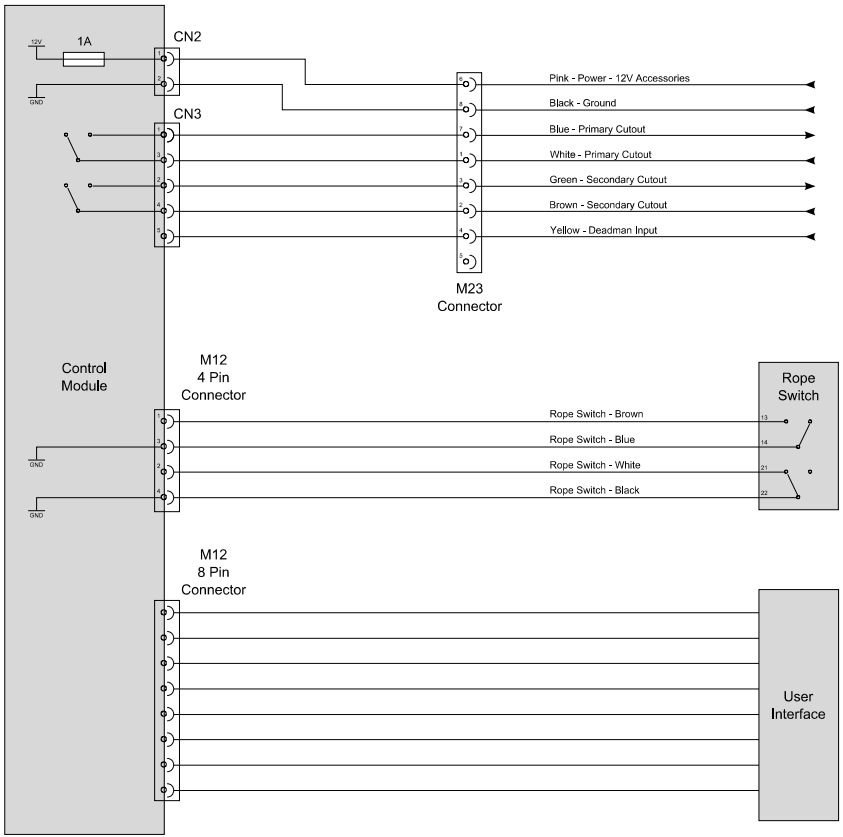

The generic wiring diagram for the Crush Guard is shown below:

Below: Zoomed in for improved readability

​

• Related Articles

• Crush Guard - Installation - Generic Wiring Connections

  The Crush Guard is designed to be fitted to any mast machine, shown below are generic kit machine connection / wire color descriptions. Pink wire. System power should be installed on the output of the E-Stop. Black wire. System ground should be ...

• OverWatch - Installation - Generic Troubleshooting Diagram

  Generic Overwatch to machine interface diagram Even though the diagram below is specific to the Haulotte Opti 8, it's being published here as a generic representation for most other brands and models. The Overwatch interfaces to most brands and ...

• Crush Guard - Installation - Genie ALC500 Wiring Connections

  This Tech Doc shows Crush Guard wiring connections on the ALC500 Boom Lift Installation Steps: 1. Remove the 4 bolts that secure the lid to the operator control box. 2. Using a flat head screw driver, remove the installed grommet from the operator ...

• Crush Guard - Installation - Genie ALC1000 Wiring Connections

  This Tech Doc shows Crush Guard wiring connections on the ALC1000 Boom Lift Required hardware: 1000mm of two core cable minimum 18 gauge AWG 700mm of pink wire, minimum 18 gauge AWG 5 x red crimp joiner 1 x blue crimp joiner 1 x yellow crimp fork ...

• Crush Guard - Installation - Haulotte HA15-IP Wiring Instructions

  This Tech Doc was written to help with wiring on a Haulotte HA15-IP Installation Steps: 1. Connect the ground Black wire from the crush guard harness to the Wire 100 2. Connect the Pink power wire(24V) to the wire id 106. 3. Locate the deadman switch ...
