Crush Guard - User - Troubleshooting

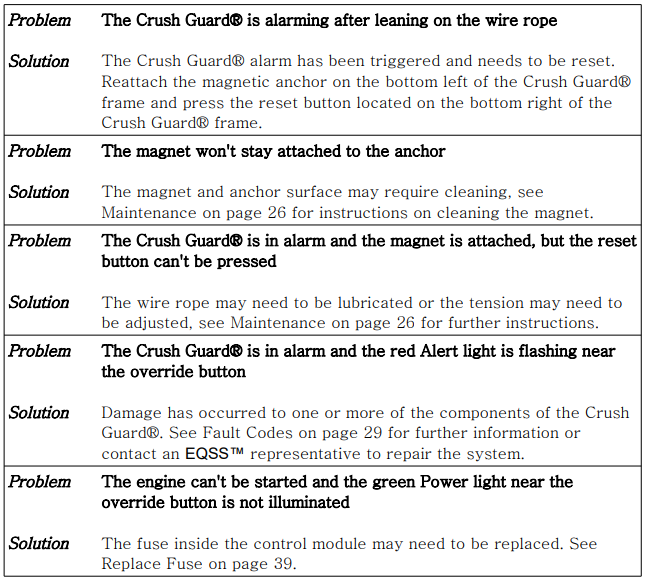

This section describes how to identify and solve common problems that may occur while
operating the EWP with the Crush Guard®.
