Gen4 - Hardware - Forward Camera

Gen4 - Hardware - Forward Camera

The forward or side wheel camera is displayed on the screen when the telehandler is in forward gear.
It is positioned to show the view of the front right wheel, which is usually obstructed from the view of the operator by the boom while performing a pick-and-carry lift. This allows the operator to see obstructions that will hit the front right tire while driving.

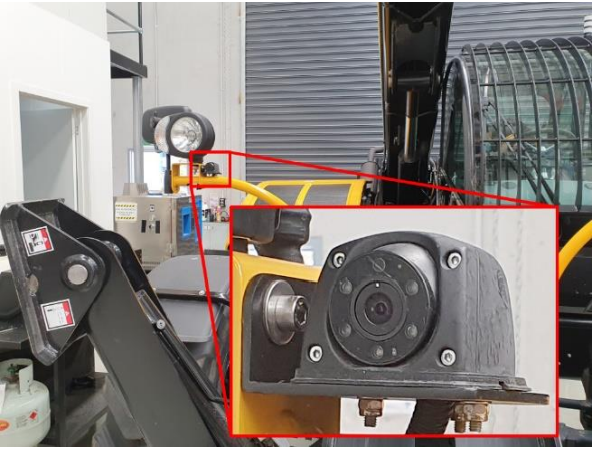

Photo of front camera mounted in position (on a Haulotte HTL4017) - with enlarged view in red outline


The camera's viewing angle may need to be adjusted once the system is installed and the display is operational.
Adjustment:
Set the machine into forward gear to activate the forward camera. Adjust the forward camera so the front right wheel is visible.
