Gen4 - Hardware - Reverse Camera

Gen4 - Hardware - Reverse Camera

The reverse camera video is displayed on the screen when the machine is in reverse gear.
This device enables the operator to see behind the telehandler while reversing.

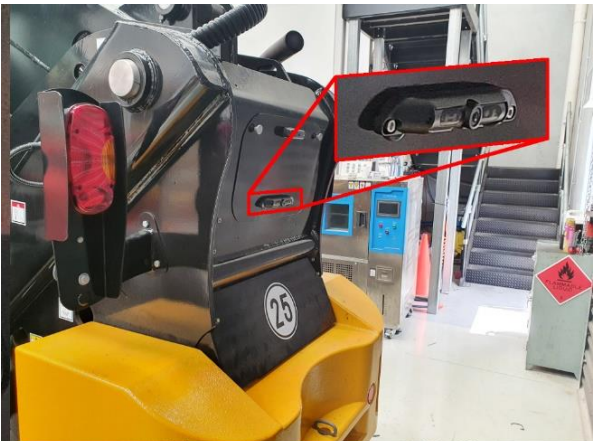

Photo of rear camera mounted in position (on a Haulotte HTL4017) - with enlarged view in red outline




The camera's viewing angle may need to be adjusted once the system is installed and the display is operational.
Adjustment:
Set the machine into reverse gear to activate the reverse camera. Adjust the reverse camera so the video is level.
