Gen4 - User - Display Settings

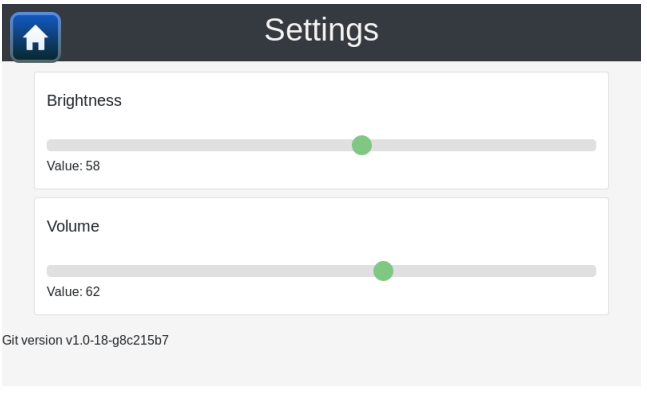

Press the display settings icon in the top right corner of the rating chart to show the display settings page.

The display settings page allows the brightness and volume of the display to be adjusted. The display software version is also shown in the bottom left corner.

​
