The menu system allows for configuring the Gen4-LMS.
To enter the menu system, press the menu icon from the main screen.

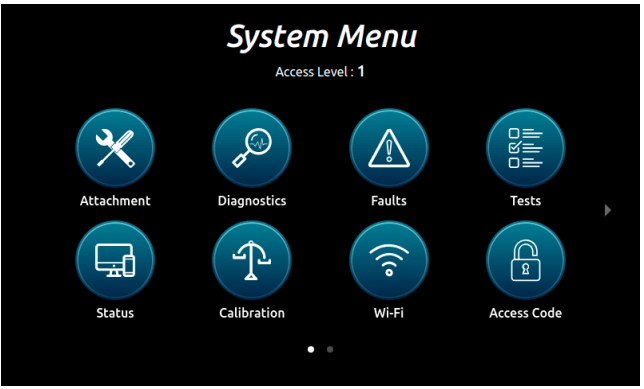

This will display the main menu as shown below:

Swipe left and right to change between the different menu pages.
The menu system is accessible through 3 access levels:
Level 1: Operator – This is the default access level and allows access to functionality that is required by the operator of the machine
No Passwords required

Level 2: Technician – This allows access to functions that are required by a technician in order to carry out a service of the machine or after installation of the Gen4-LMS
Password for Level 2 Access = 4981

Level 3: Factory Configuration – This is used during installation and fitting of the Gen4-LMS by the machine manufacturer, and is out of scope for this Tech Doc. There are no menu options through the Gen4-LMS display that require level 3 access.
Password for Level 3 Access = 6372

Below is a description of each of the menu options:
Attachment (Level 1) – This is another method of selecting the attachment, see Attachment Menu above
Diagnostics (Level 1) – Shows the Gen4-LMS diagnostics information to help debug problems with the system
Faults (Level 1) – Shows any active error codes and describes the cause of the error and lists solutions
Tests (Level 1) – Performs tests on the various outputs to ensure the Gen4-LMS components and the interface to the machine is functioning correctly
Status (Level 1) – Shows the Gen4-LMS status information, including information related to the machine and version numbers
Calibration (Level 2) – Allows for calibration of the Gen4-LMS sensors after a service or installation.

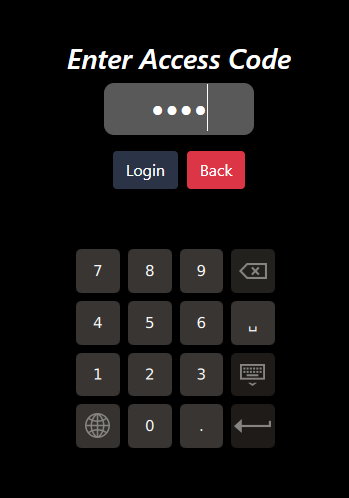

Wi-Fi (Level 2) – Turns on and configures the Gen4-LMS for external Wi-Fi access via a smartphone, tablet or laptop to provide additional functionality Access Code – Enter an access code to change the access level
Configuration (Level 2) – Used to configure the Gen4-LMS to the machine model during installation
System Time (Level 1) – Sets the system time and timezone for the Gen4-LMS
