Gen4 - User - Override

Gen4 - User - Override

The Gen4-LMS will engage the hydraulic cutout if the telehandler is beyond it's recommended capacity.
The operator is allowed to temporarily override this cutout in order to allow the boom to be moved back into a safe working region. See the machine operator manual for details on the override switch. When the override is engaged, this will display the override in the quick view on the main screen. The number in the quick view is the amount of time remaining in seconds until the cutout is re-engaged. Once the number drops to 0 the operator will need to release the switch and then hold again for additional override time. The default override time is 15 seconds. It can be increased to a maximum of 60 seconds via the configuration.

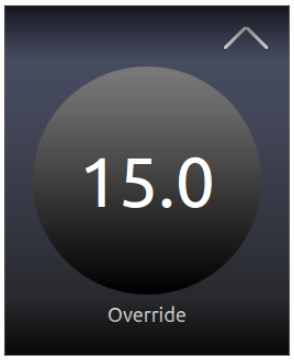

Override for 15 seconds in the image below:
