Gen4 - User - Quick View

Gen4 - User - Quick View

The quick view area contains specialized information.
Each quick view page is displayed in the following section:

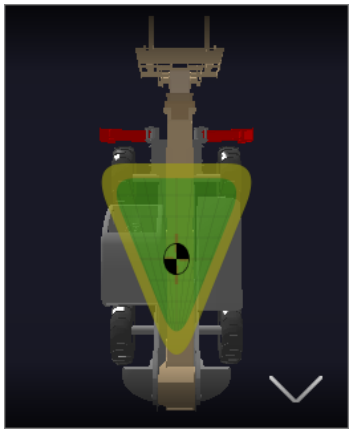

Dynamic Stability Triangle (DST)
The stability triangle shows the current center of mass of the telehandler, taking into account the lifted load and the carrier angle. The centre of mass location is indicated by the circular icon. The centre of mass is overlay over a triangle, which is drawn between the front tyres and the centre of the rear axle. If the centre of mass moves outside of the triangle, there is a danger of tipping over the telehandler. When both stabilizers are lowered the stability triangle is redrawn between the stabilizers and rear axle.

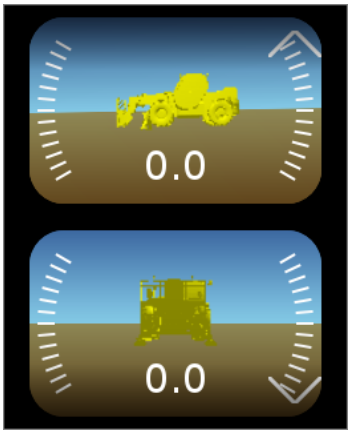

Pitch & Roll Angles
This view shows the current pitch and roll of the telehandler. The top icon shows the pitch angle and the bottom icon shows the roll angle.
The angle in degrees is shown below the picture.

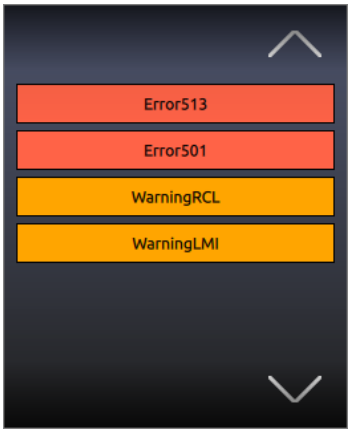

Notifications This view shows important notifications and errors.
Press on the error notification to see the full error message description.

Each page can be scrolled by pressing the corner arrows or by dragging the quick view area.
