Gen4 - User - Screen Layout

Gen4 - User - Screen Layout

The Gen4-LMS is operated and controlled from the touchscreen display mounted inside the cabin.

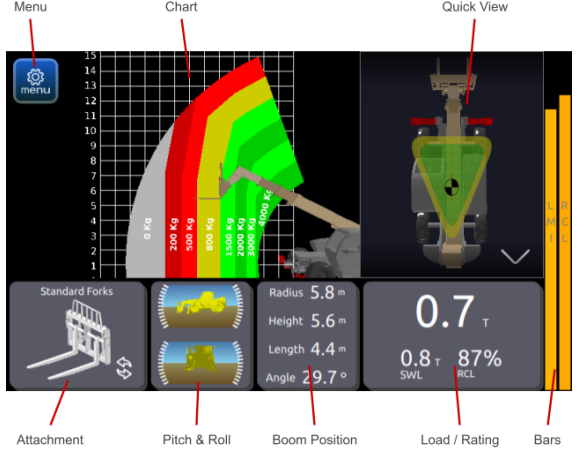

Main screen illustration and descriptions below:


Menu
Press this button to access the menu system.
Chart
This shows the rating chart for the currently selected attachment. Tapping on the rating chart window will show the additional options including the display settings.
Quick View
The quick view contains multiple pages of specialized information that is useful for the operator.
Attachment
This displays the description and picture of the currently selected attachment.
Pitch & Roll
This displays the pitch and roll angle for the machine. If shown on the quick view page, this changes to the stability triangle.
Boom Position
This shows the current boom position values:
●  Radius – This displays the current radius of the attachment in meters measured from the attachment load center to the front of the tire
●  Height – This displays the current height of the attachment from the ground to the bottom of the attachment
●  Boom Length – This displays the current length or extension of the boom in meters
●  Boom Angle – This displays the current boom angle in degrees
Load / Rating
This shows the current load and capacity values.
●  Load – This displays the currently lifted load in tonnes and has a 0.1T resolution
●  SWL – This displays the maximum rating in tonnes from the rating chart for the current boom position
●  RCL/LMI Percentage – Shows the percentage of maximum load for the Rated Capacity Limiter (RCL) or Load Moment Indicator (LMI) whichever is greater. If the LMI is disabled only the RCL percentage will be shown.
Bars
This shows the RCL and LMI percentage bar graphs. The bar changes from green to yellow to red the closer it gets to 100% capacity. If the LMI is disabled only the RCL bar graph will be shown.
