Notes
The diagnostics page allows real time monitoring of the sensor data.
The purpose of this Tech Doc is to offer an example of what is meant when a customer is requested to retrieve Overwatch diagnostics for EQSS to analyse as part of a customer trouble shooting effort. These diagnostics pages are accessed usually via a mobile phone web browser and can be easily captured as screen shots. All modern smart phones have a screen capture facility and some are more user friendly than others.

For example. the latest generation of Motorola phones (if enabled) can screen capture by simply touching the screen with three fingers.

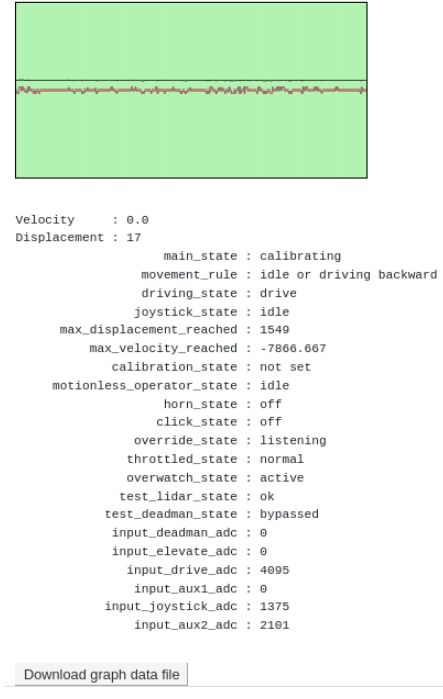

Below, an example of a screen capture
The graph shows the raw position, raw velocity, computed displacement and velocity.
Section below the graph - the diagnostics page also shows the state of the various subsystems in the OverWatch.
Notes
The ADC values (and IO port states - on a different diagnostics page) are the parameters that we usually need to determine faults
