Overwatch - Software - V9 not compatible with Genie Gen 5 Pre-2022 Harness

Overwatch - Software - V9 not compatible with Genie Gen 5 Pre-2022 Harness

Notes
The original Overwatch Harness on the Genie Gen 5 control box is incompatible with Overwatch V9 software

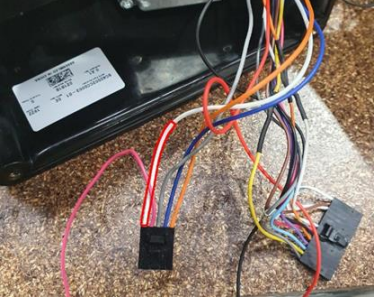

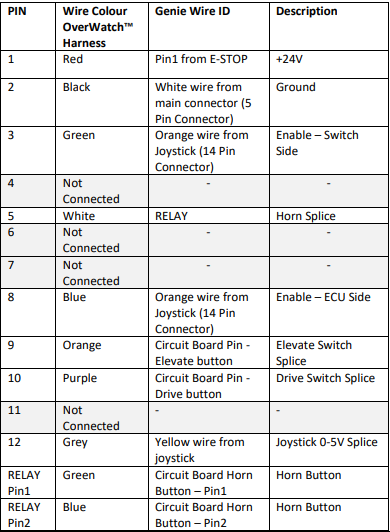

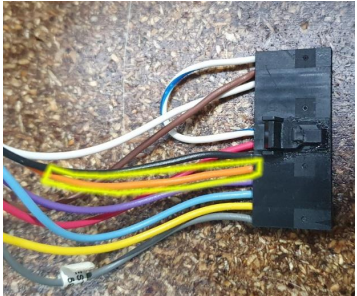

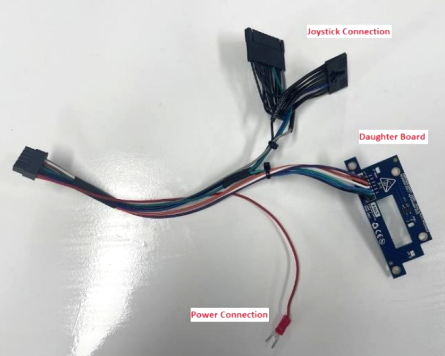

The original solder in harness is very different to the current harness and can be identified by comparing it to the photos below.





Alert
If your harness looks like the harness in the above photos, contact EQSS for a current version harness that will work with OW9
