OverWatch - User - Inspection & Maintenance

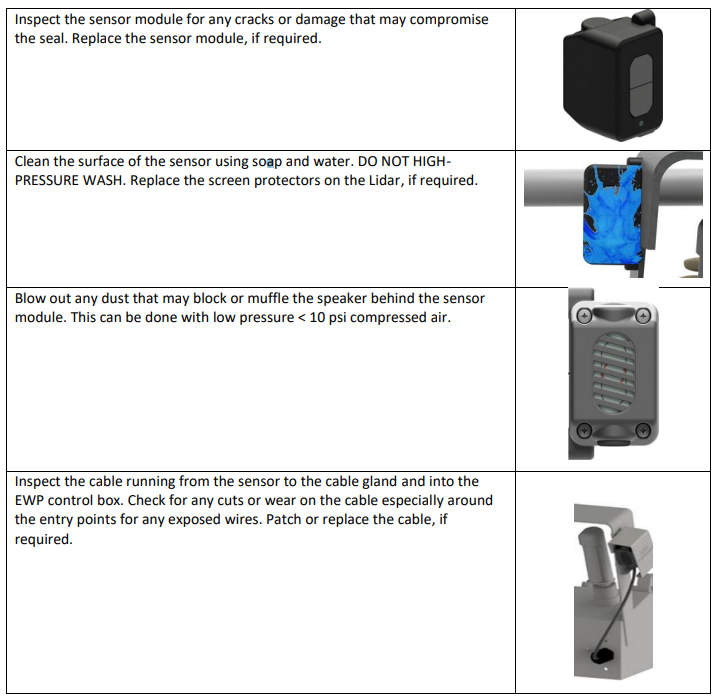

Regular maintenance must be performed on the OverWatch™ components to ensure the system operates correctly.

This maintenance must be performed every 12 months in a rental situation, or before the machine is released to the hire customer.
