Warning
The OverWatch is an aid to the operator and this system should not in any way replace operator training.
Notes
The system relies on optical detection principals and may not work in all situations and environments.

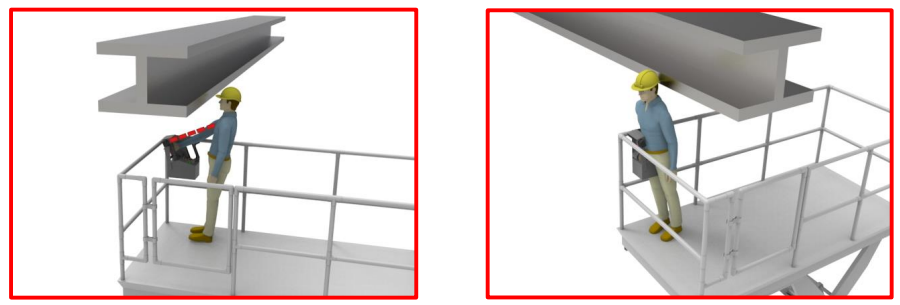

A shear event can occur when the platform is in drive mode and the operator is struck by a stationary object. This event is detected based off the operator’s acceleration, velocity and current position. The direction of the operator’s movement is opposite to the movement of the platform.

For example:
If driving forward, the operator can move forward to look over the front of the platform when driving, and when driving forward, if a shear event occurs, the object would push the operator backwards. If the operator is driving backwards, a shear event would push the operator forward towards the control box.

If a shear event is detected, the machine cutout will be applied, and the operator will be prevented from driving the machine. The system will then announce “Cutout”. The operator can always regain control of the machine by moving back into the correct working position or by applying the system override to move out of the dangerous situation. Since the OverWatch™ only applies the cutout to the upper control panel, the lower panel can be used at any time to take control of the machine and lower the platform.

In the situation where a shear event has been detected, and the OverWatch has sensed that the operator has not moved position within 5 seconds; the OverWatch calculates that the operator may be pinned, stuck or incapacitated. As with a crush event and subsequent pinning of the operator, the OverWatch will sound the machine’s horn 3 times every 10 seconds. This is to alert surrounding workers about the situation, so that they may assist where required. If the operator releases and then presses the joystick trigger, the OverWatch determines that the operator is not incapacitated and is able to control the machine and cancels the horn alert.
Alert
The OverWatch only applies the cutout to the upper control panel, the lower panel can be used at any time to take control of the machine and lower the platform.
