SFPL - Installation - GMJ LL28-300 - Cable Reeler Installation

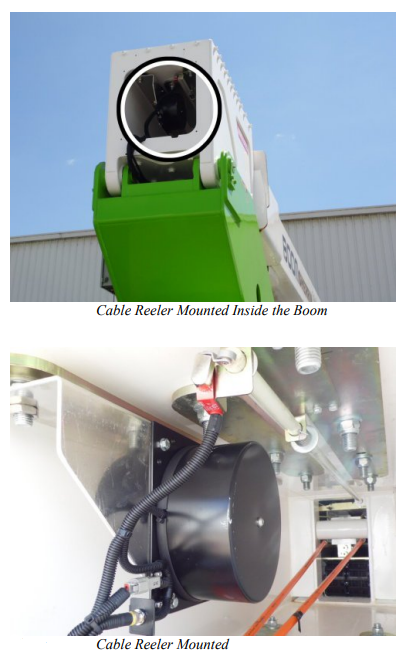

The cable reeler is designed to mounting inside the boom.
Secure the cable reeler with
the nylon cable running out the top pointing towards the inside of the boom, mount
using four M8 bolts in each corner.
Extend the nylon cable and anchor it to the inside boom section.
Connect a normally closed switch to the 2-Pin connector on the cable reeler. The
switch should be closed when the boom has been fully retracted (stowed).

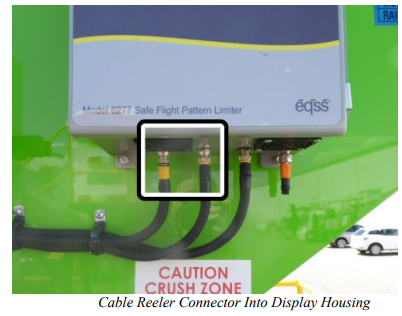

Connect the supplied 4 metre M12 Circular connector cable to the connector on the
cable reeler. Run the cable to the display housing and connect into either of the M12
female connectors.

The cable reeler can be connected into either of the two M12
female connectors on the display housing
