SFPL - Installation - GMJ LL28-300 Display Housing

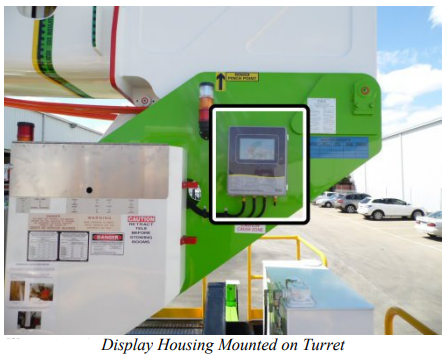

The display is housed within a IP67 rated enclosure and must be installed on the left side of the LL28-300 turret.

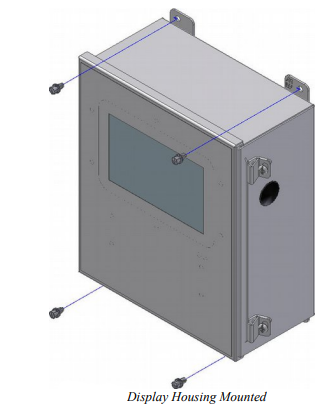

The unit must be secured using four M6 bolts in each corner of the housing.
