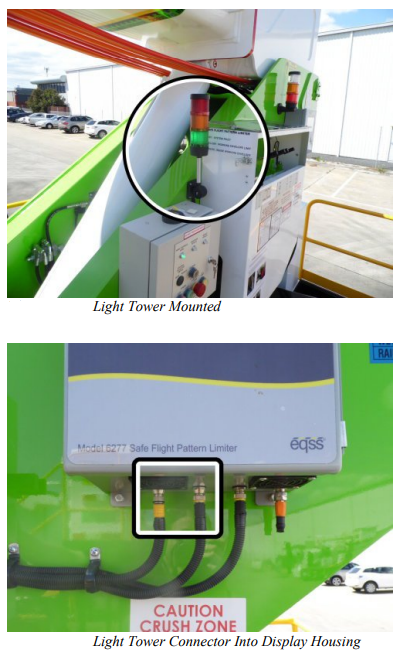

The light tower should be mounted in a location visible to workers around the man platform.
Secure using four M6 bolts. Run the cable to the display housing and connect to the spare M12 female connector.


The light tower can be connected into either of the two M12 female connectors on the display housing
