SFPL - Installation - GMJ LL28-300 - Power / Cutout

The system uses a 4-Pin cable to supply power to the system and to signal cutout / fault conditions.

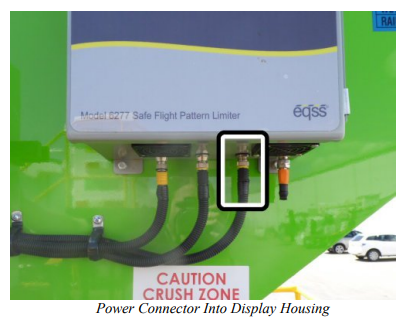

Connect the supplied 4-Pin cable to the left male connector on the display.

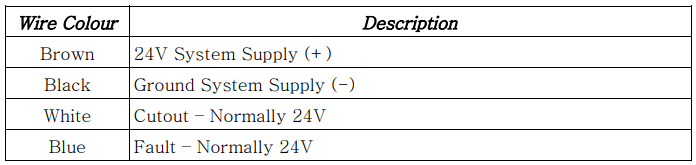

Connect the other end of the cable according to the table below.

The output signals are designed to be fail to safe. Therefore the cutout / fault signals generated are the same as if the cable has been cut.
