SFPL - Installation - Power / Cutout

The system uses a 4 pin cable to supply power to the system and to signal cutout / fault conditions.

Connect the supplied 4 pin cable to the left male connector on the display.

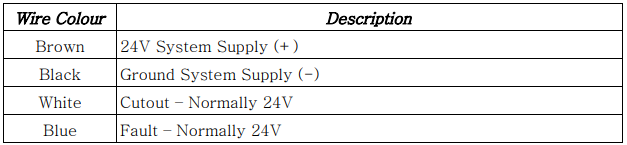

Connect the other end of the cable according to the table below:

The output signals are designed to be fail to safe. Therefore the cutout / fault signals generated are the same as if the cable has been cut.
