SFPL - Installation - Sensor Calibration

Once the installation is complete, the sensors will require calibration.

Sensors may also require re-calibration with other maintenance tasks (Display, SD card, Cable reeler replacement)

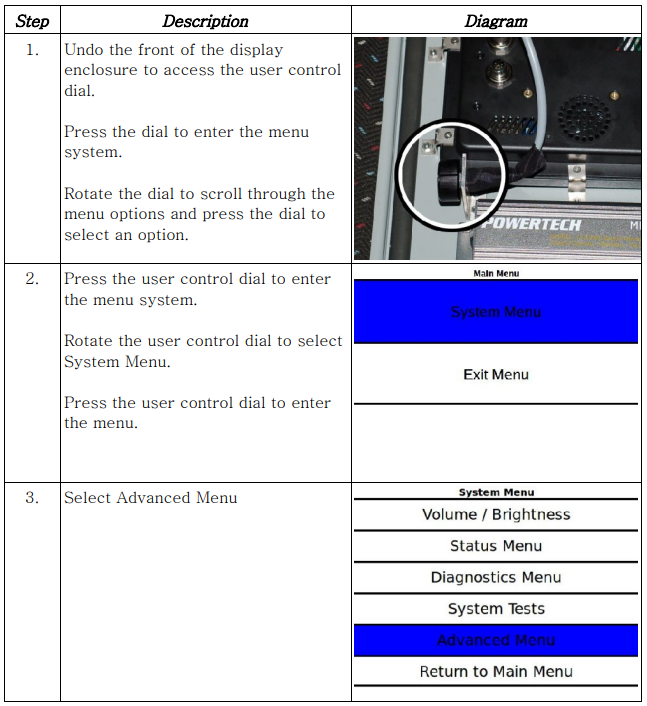

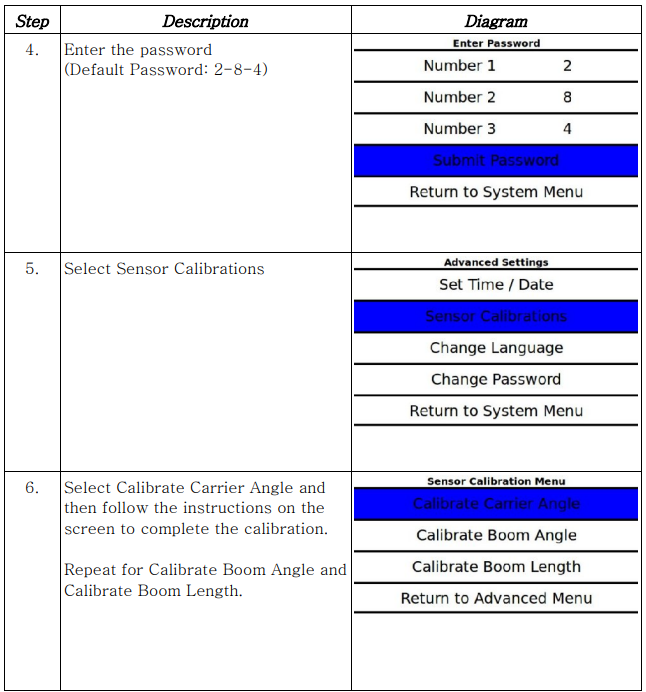

Sensor calibration steps below:

A sensor calibration must be performed once the cable reeler and display enclosure have been mounted. If the cable reeler or display enclosure have been moved/re-positioned a re-calibration must be performed.
