SFPL - User - Status Icons

The top right of the main window below the status description holds the location of the status icons.

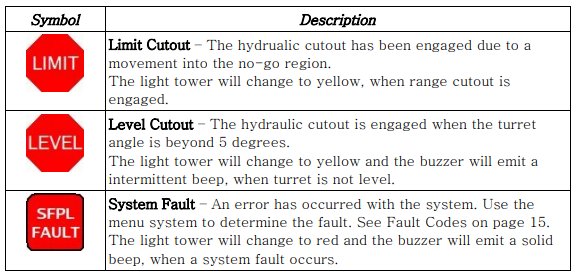

Below is a description of each status icon:
