The menu system allows for configuring and diagnosing the SFPL.
To enter the menu system press the user control dial. This will display the main menu. To navigate through the menu options rotate the user control dial. The currently selected option will be highlighted. To select the highlighted option press the user control dial. To change a menu value item (e.g. change the volume). Highlight the item to be modified and press the user control dial. The item background will change to the edit color. Rotate the user control dial to change the item value. Press the user control dial again to save the new value.

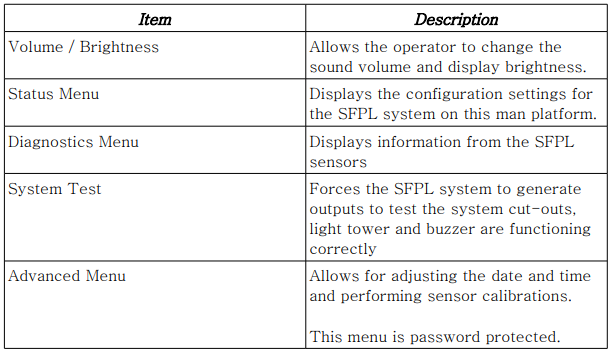

The main menu contains the following:

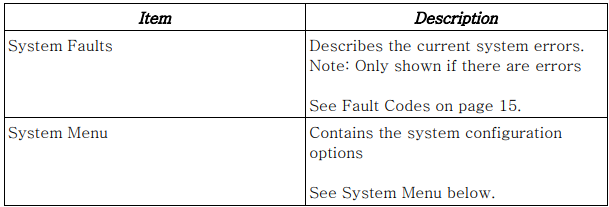

The system menu contains the following:

    • Related Articles

    • SFPL - User - Main Screen Layout

      All principle SFPL operating data is displayed on the EQSS SFPL main screen Status Description – This displays the current status of the SFPL. Range Chart – This shows the capable range of the main boom segment, the blue crosshair shows the current ...

    • SFPL - User - User Input Control

      The user control dial is used in order to access the menu to perform diagnostics. To access the user control dial, release the two bolts holding the enclosure lid. Slightly open the lid to control the user dial. The user input control dial has 3 ...

    • SFPL - User - Status Icons

      The top right of the main window below the status description holds the location of the status icons. Below is a description of each status icon:

    • SFPL - General - Maintenance

      The components of the SFPL require periodic checks and maintenance to be performed to ensure it remains in working order. Cable Reeler Lubrication The cable reeler consists of a multi core cable wrapped around a drum. As the boom extends, the cable ...

    • Gen3 - User - User Input Control

      The User Input Control mounting is Telehandler dependent and can be found in one of multiple locations within a cab. Below are some common mounting positions: The user input control switch has 3 functions: increment up, increment down and select. ...
