SFPL - User - Main Screen Layout

SFPL - User - Main Screen Layout

All principle SFPL operating data is displayed on the EQSS SFPL main screen

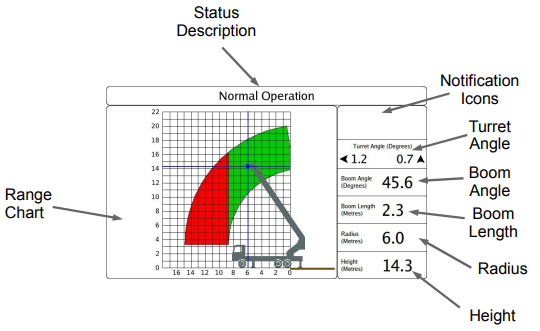

Status Description – This displays the current status of the SFPL.
Range Chart – This shows the capable range of the main boom segment, the blue crosshair shows the current boom position. The green area is the safe location. The red area is the cutout or no-go location. Rotate the user dial to zoom into the chart for more detail (if required).
Notification Icons – This area displays the important notification icons.



Turret Angle – This shows the current angle of the turret. The arrow points in the direction of the tilt, while the number shows the degree of tilt.
Boom Length – This displays the current length or extension of the first boom segment in meters.
Boom Angle – This displays the current angle of the first boom segment in degrees.
Radius – This displays the current radius to the end of the first boom segment in meters measured from the point of rotation for the turret.
Height – This displays the current height to the end of the first boom segment in meters measured from the ground.
