Underwatch - Installation - ECU Module

This Tech Doc outlines the connections that need to be made to the machine

Installation Steps:

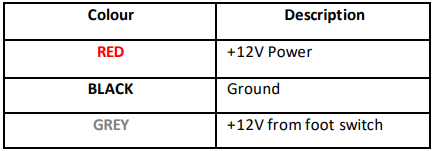

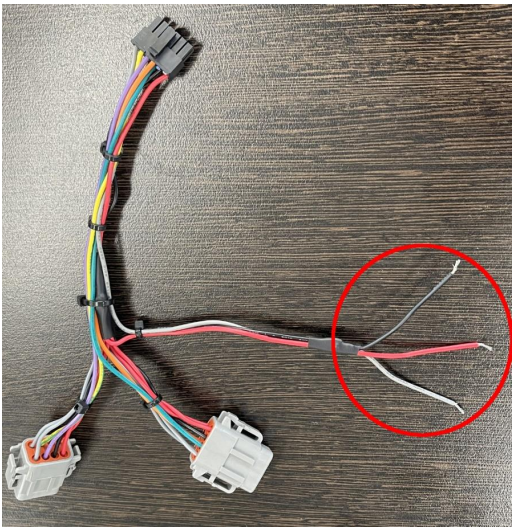

1. Observe and take note of the harness information below

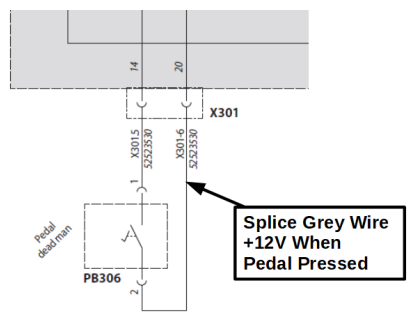

2. Splice grey wire into “Pedal dead man” wire X301-6.

Wire should be +12V only when pedal and joystick trigger is pressed.

3. Splice the red wire to a 12V or 24V wire.

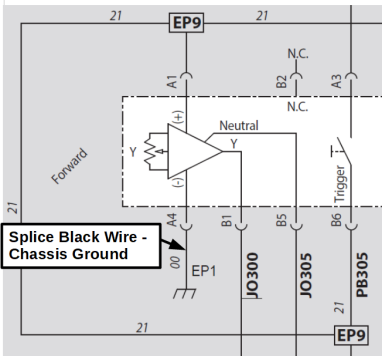

4. Splice the black wire to a ground wire or lug.
