This Tech Doc was created to help install the User Interface

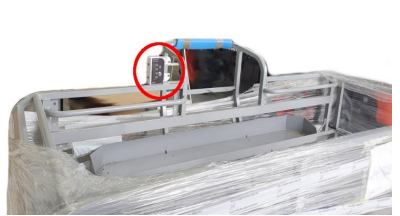

1. Install the User Interface in the location as shown below in the photos

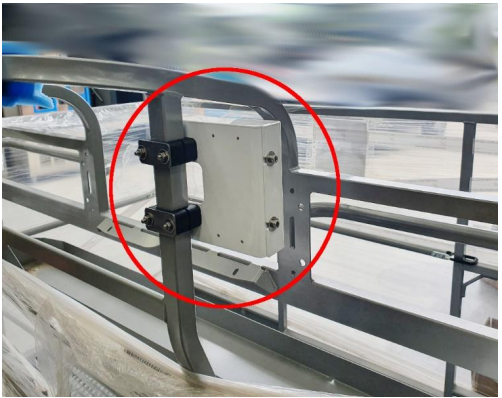

2. Using the supplied M6 screws, washers, clamps, and nuts, install the user interface on the bar shown in the image below.
