The Gen-3 safety system has the ability to connect up to 3 cameras to improve the operators' range of vision

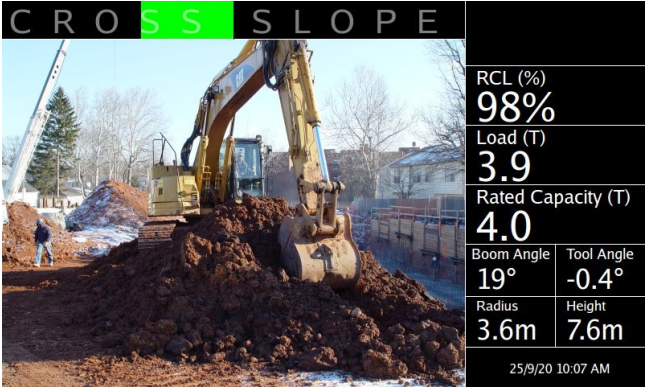

Below: Camera View on the Main Screen Display


Reverse camera – This is displayed when the ITC is in reverse gear. The camera shows obstructions that are behind the ITC (that the ITC might hit when reversing).

Platform camera (Optional) – This is activated by a switch in the dashboard. The platform cameras are mounted on some man platforms to allow the operator to monitor personnel inside the platform.

Remote camera (Optional) – This is activated by a switch in the dashboard. The remote camera is a wireless camera that can be placed in a location to help the operator complete the lift. It can be mounted on the dogman's helmet to allow the operator to see from the dogman's perspective, or it can be mounted on the attachment, to allow the operator to perform fine manoeuvres (at long extensions where it is difficult to see the attachment).

Alert
If a cutout or alarm occurs or if the boom has been moved a significant distance the camera will switch off to allow the operator to see the stability and rating chart windows
