ITC SWL- General - What is it and System Startup

The SWL system is activated when the ignition is set to accessories or first stage.

The ITC SWL is a no display Safe Working Load management system. It uses inclinometers and pressure sensors to generate cutouts when safe working load conditions are exceeded. System states and system conditions are displayed as a series of flashes via the in cabin warning light (described here).

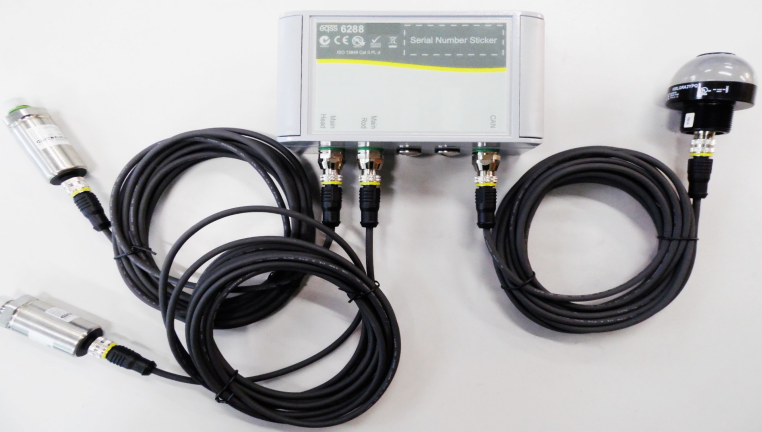

Main components of the ITC SWL

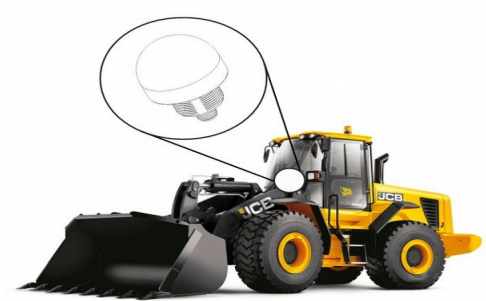

The light fitted inside the cabin will turn a solid green color.
