Gen3 - Faults - Only Left Stabiliser Showing On Manitou MT1440/1840
This article applies to Manitou MT1440 & MT1840 machines fitted with the Gen3-LMS
After updating the Manitou software on an older MT1440 or MT1840 machine, there may be problems detecting when both stabilisers are lowered on the Gen3 display.

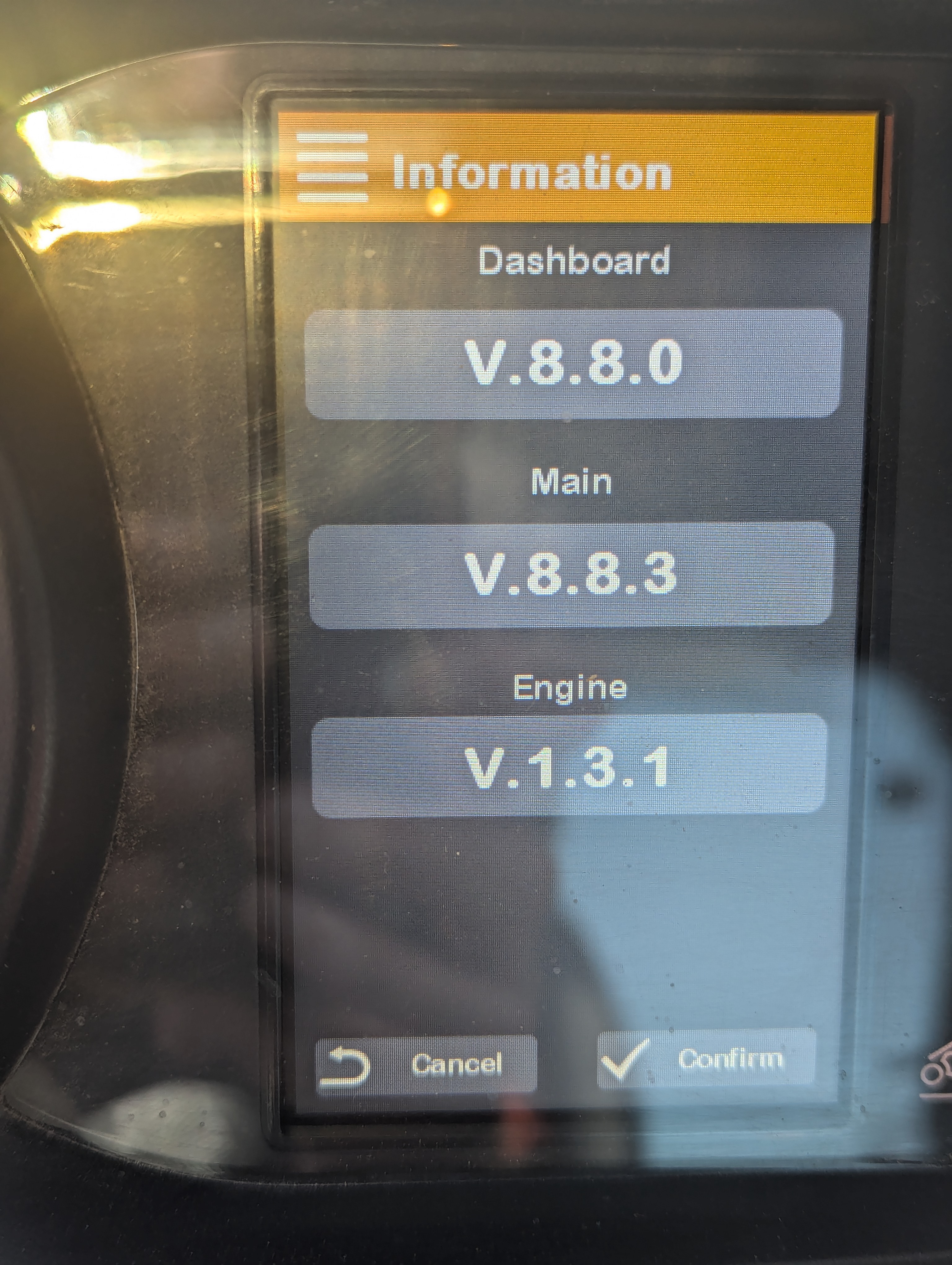

If the machine has been installed with an older Gen3 CAN I/O Module (see list here) and has Manitou software versions Dashboard V.8.8.0 and Main V.8.8.3 or newer (see picture below), then the CAN I/O module must be replaced to work correctly with the new Manitou software.
Contact EQSS and order the AS002508 CAN I/O Module Replacement Kit.
