Gen4 - Faults - Troubleshooting

The following section describes how to troubleshoot problems with the Gen4-LMS:



• Related Articles

• MCL - Faults - Troubleshooting

  List of common problems and solutions:

• SFPL - Faults - Troubleshooting

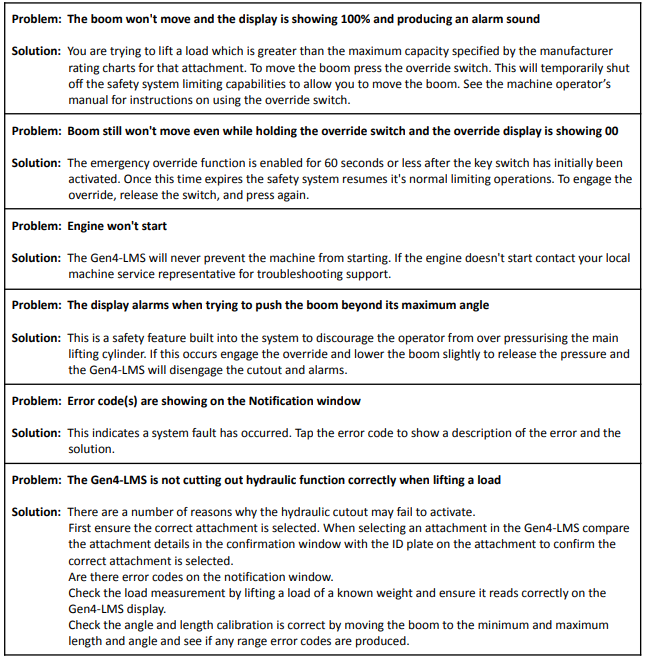

  Table of common issues:
